Long Outlet Shapes
Art.-No. 401-46009 | 146-2-G-PO-X-BK | Details

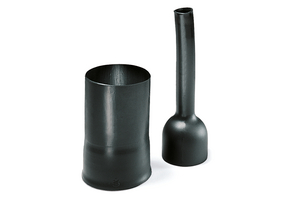

135-1-G as supplied / fully recovered.

Low profile and light weight style
Ideally suited to aerospace harness assemblies
Extended tail provides excellent strain relief and flexibility

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Long Outlet Shapes >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Local order number	146-2-G
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	146-2-G-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 140 Series, without rib
Product Group	Long Outlet Shapes
Type	146-2-G

Product Dimensions

Flexibility	Semi rigid
HW ± 20%	2.0mm
JW ± 30%	2.0mm
P ± 10%	127.0mm
R nom	15.7mm
R ± 10%	15.7mm
S nom	97.0mm
W ± 20 %	2.0mm
Weight/Unit	0.004kg
∅H max b	14.5mm
∅H min a	22.3mm
∅J max b	5.3mm
∅J min. a	10.2mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+135 °C
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Tensile Strength	15MPa
UV-Stabilised	No

Logistics and Packaging


Country of Origin	GB
Customs Number	39174000
GTIN-13 / EAN	5022660428449
Packaging 1 - Height (m)	0.030m
Packaging 1 - Length (m)	0.160m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00058m³
Packaging 1 - Weight (kg)	0.004001kg
Packaging 1 - Width (m)	0.120m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
