Connector Cover for Min-D Series
Art.-No. 415-01003 | 1501-1-G-PO-X-BK |  Details

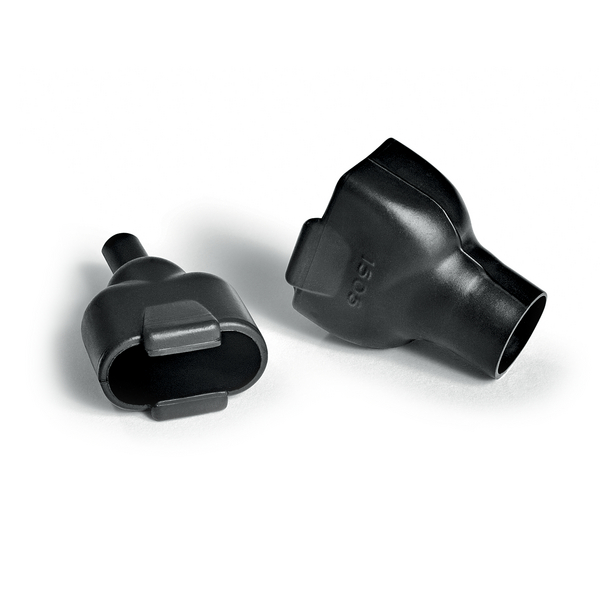

1505-1 supplied / fully recovered.

    • Provides strain relief and mechanical protection for Min-D series connectors
    • Unique design allows perfect orientation on installation
    • Can be supplied with or without lips
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 1501-1-G
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1501-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 1500 Series, with top entry
    Product Group Connector Cover for Min-D Series
    Type 1501-1-G
    Flexibility Semi rigid
    P ± 10% 53.3mm
    R ± 10% 28.4mm
    W ± 20 % 1mm
    ∅H max b 58.7mm
    ∅H min a 58.4mm
    ∅J max b 10.7mm
    ∅J min. a 10.6mm
    ∅K max. b 8.6mm
    ∅K min. a 17.2mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Minimum Shrink Temperature +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660428845
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
