Bottle Shapes, VG style
Art.-No. 401-52021 | 152-42-H-PO-X-BK | Details

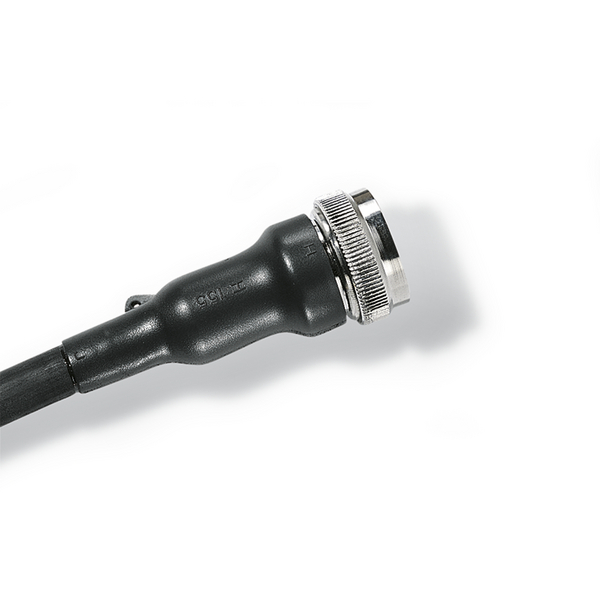

150 Series boot recovered onto a connectors.

Use in conjunction with circular grooved adaptors
Strengthened strain relief by usage of an additional inner lip
Excellent protection against environment impacts
Eliminates moisture ingress to harness

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	152-42-H
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	152-42-H-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 150 Series, with rib
Product Group	Bottle Shapes, VG style
Shrink Ratio	4:1
Type	152-42-H
Variant	For plug

Product Dimensions


Flexibility	Semi rigid
HW ± 20%	1.6mm
JW ± 20%	0.5mm
JW ± 30%	1.0mm
P ± 10%	38mm
R nom	21mm
R ± 10%	21mm
S nom	10mm
T ± 20%	1.0mm
V ± 10%	3.0mm
Weight/Unit	0.004kg
∅H max b	10.5mm
∅H min a	24mm
∅J max b	6mm
∅J min. a	24mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-99-780-0443
Operating Temperature	-55 °C to +105 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications
Specifications	VG 95343 NAVSEA 5617649
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660430824
Minimum Order Quantity	25
Packaging 1 - Height (m)	0.020m
Packaging 1 - Length (m)	0.120m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00024m³
Packaging 1 - Weight (kg)	0.004001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
