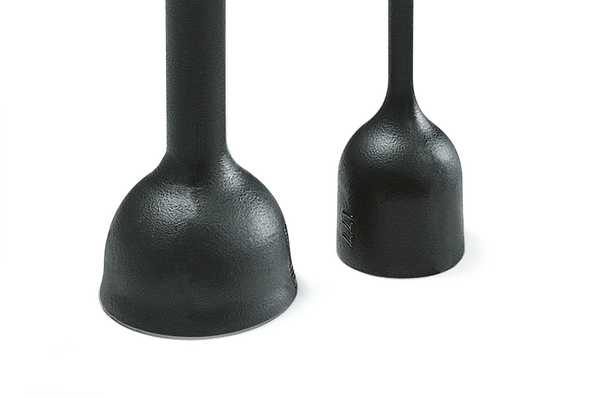

Bottle Shapes, VG style
Art.-No. 401-76060 | 176-1-HW17-PO-X-BK | Details

177-1-G as supplied / fully recovered.

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, E4500, CHG900
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	176-1-HW17-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 170 Series, with rib
Product Group	Bottle Shapes, VG style
Type	176-1-HW17
Variant	For plug

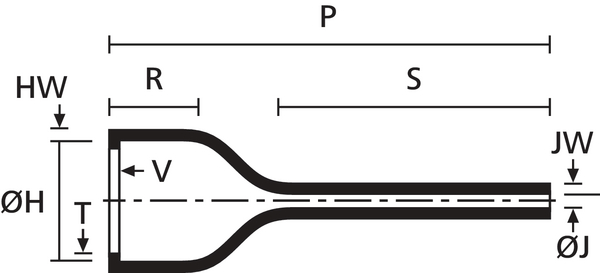

Product Dimensions


Flexibility	Semi rigid
HW ± 20%	1.5mm
JW nom	1.1mm
JW ± 30%	1.1mm
P ± 10%	60mm
R nom	12mm
R ± 10%	11.7mm
S nom	38mm
T ± 20%	1mm
V max	3.3mm
Weight/Unit	0.007kg

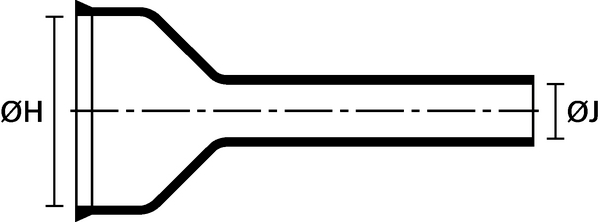

∅H max b	13mm
∅H min a	19mm
∅J max b	2mm
∅J min. a	6mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+135 °C
Operating Temperature	-50 °C to +135 °C
ROHS compliant	Yes
Shelf Life	5 years
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660680458
Minimum Order Quantity	25
Packaging 1 - Height (m)	0.025m
Packaging 1 - Length (m)	0.120m
Packaging 1 - Qty	1
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.0003m³
Packaging 1 - Weight (kg)	0.007001kg
Packaging 1 - Width (m)	0.100m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
