05/11/2024

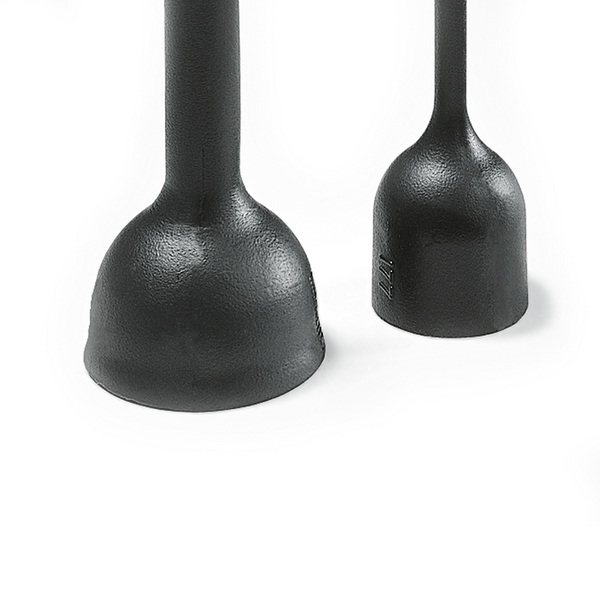

Bottle Shapes, VG style
Art.-No. 401-77005 | 177-1-J-PO-X-BK | Details

177-1-G as supplied / fully recovered.

Cable strain relief for partially loaded connectors
Small cable diameters
Use with our W24 adhesive for excellent chemical resistance

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Bottle Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	177-1-J
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	177-1-J-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 170 Series, with rib
Product Group	Bottle Shapes, VG style
Type	177-1-J
Variant	For plug

Product Dimensions


Flexibility	Flexible
HW ± 20%	1.8mm
JW nom	1.1mm
JW ± 30%	1.1mm
P ± 10%	74mm
R nom	12mm
S nom	45mm
T ± 20%	1mm
V max	3.3mm
∅H max b	19mm
∅H min a	26mm
∅J max b	2.5mm
∅J min. a	7.5mm

Downloads

Specifications

Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-01-179-2963, 5970-12-163-9213
Operating Temperature	-50 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660439773

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
