Angle Shapes
Art.-No. 418-17001 | 1817-4-G-PO-X-BK | Details

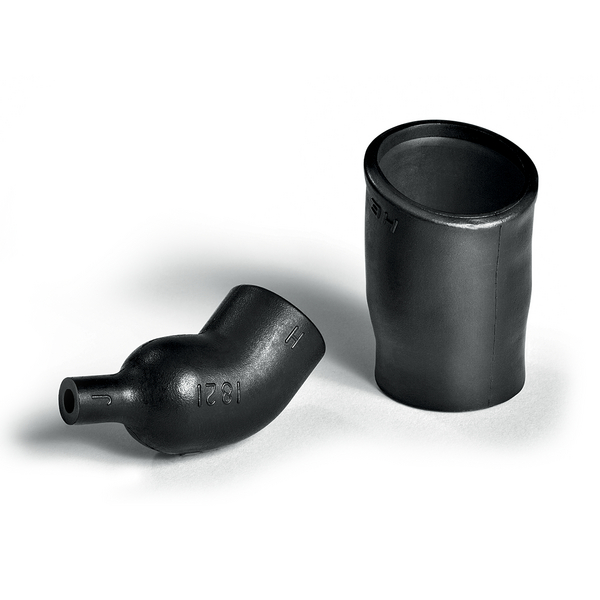

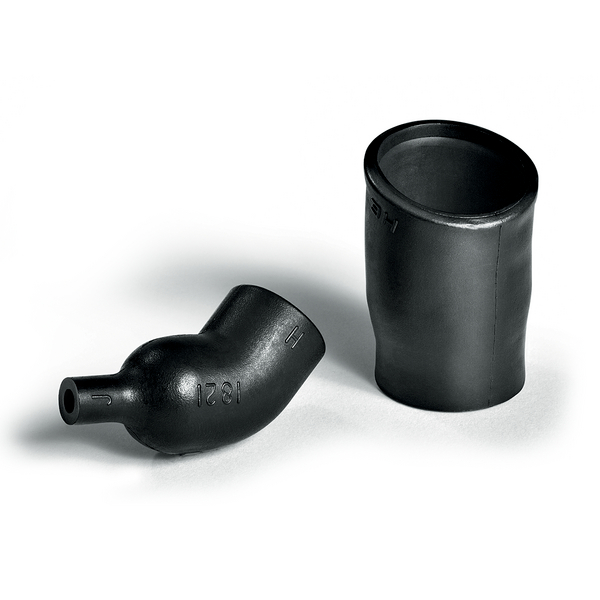

1821-42 supplied / fully recovered.

Provides strain relief and mechanical protection for harness systems
Use in conjunction with a circular grooved adaptor

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	1817-4-G
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	1817-4-G-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
Product Group	Angle Shapes
Type	1817-4-G

Product Dimensions


Angle	60
Flexibility	Semi rigid
HW ± 20%	2.0mm
JO ± 10%	18.0mm
JW ± 20%	1.0mm
P ± 10%	65.0mm
R ± 10%	32mm
S ± 10%	32.0mm
T ± 10%	3.0mm
∅H max b	33.7mm
∅H min a	60.0mm
∅J max b	14.8mm
∅J min. a	60.0mm

Downloads

Specifications

Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Specifications
Tensile Strength	15MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660441639

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
