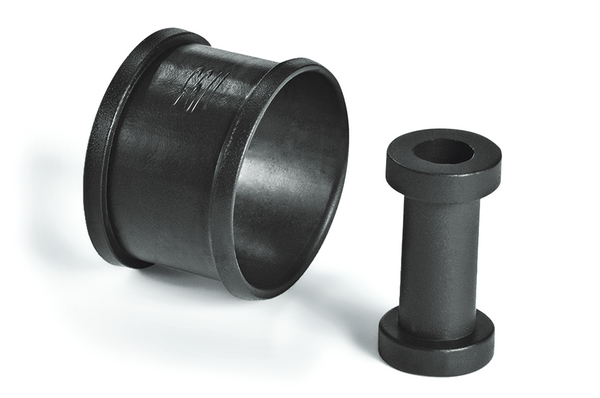

Locating Bushes
Art.-No. 418-22001 | 1822-1-G-PO-X-BK |  Details

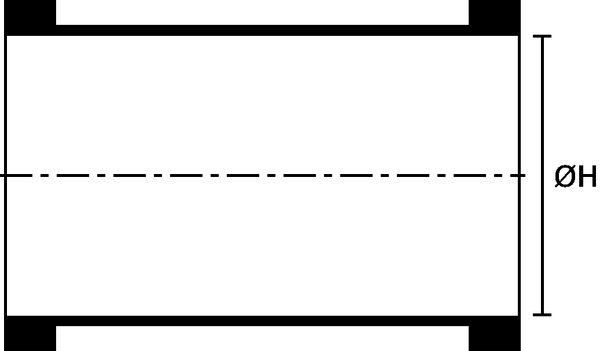

1793-1 supplied / fully recovered.

    • Provides location, cushioning, shimming and protection on cable runs through bulk head or enclosure entry points
    • Available in a range of materials and adhesives for most applications.
    • Designed for use on aerospace engine applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Local order number 1822-1-G
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1822-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family Helashrink 1760, 1790, 1820 Series
    Product Group Locating Bushes
    Type 1822-1-G
    Flexibility Semi rigid

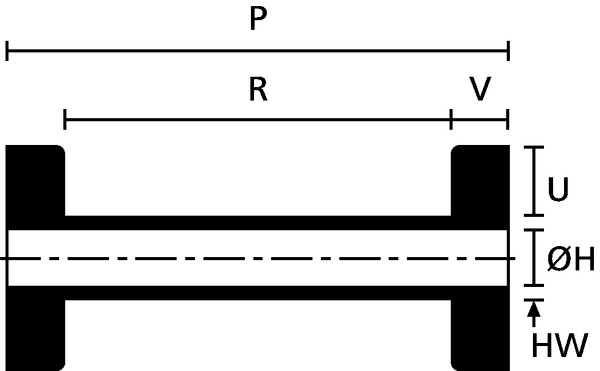

    HW ± 20% 6.1mm
    P nom. 30mm
    P ± 10% 30mm
    R ± 10% 24mm
    V ± 10% 3.0mm
    ∅H max b 5.9mm
    ∅H min a 12.0mm
    ∅J max b 10.1mm
    ∅J min. a 12mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Hazardous Goods No
    Minimum Shrink Temperature +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660441912
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
