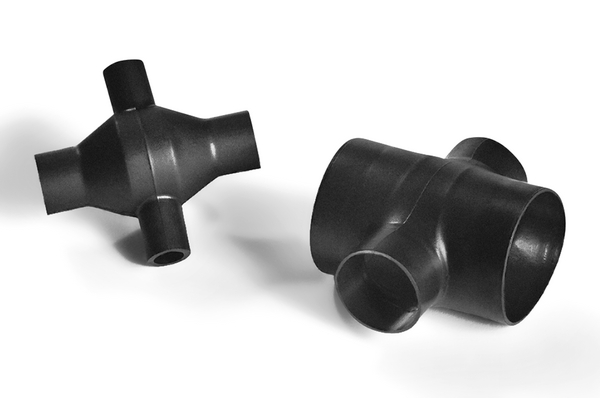

Right Angle Cross Shapes
Art.-No. 420-03001 | 2003-1-B7-PO-X-BK Details

  • Allows wires to be routed in four 90° directions
  • Provides strain relief and mechanical protection
  • Environmental sealing can be achieved when used in conjunction with one of our extensive range of adhesives

Request your individual offer now

Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour Black (BK)
Local order number 2003-1-B7
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 2003-1-B7-PO-X-BK
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Helashrink 2000 Series
Product Group Right Angle Cross Shapes
Type 2003-1-B7
Flexibility Semi rigid

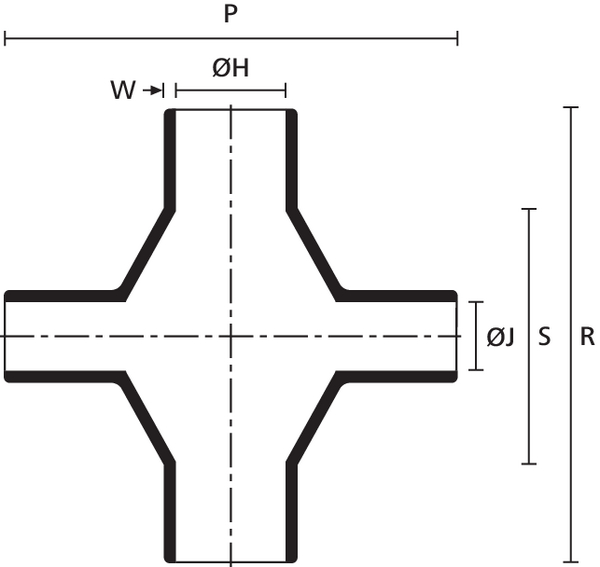

P ± 10% 38.1mm
R ± 10% 38.1mm
S ± 10% 22.1mm
W min. 1.1mm
W ± 20 % 1.1mm

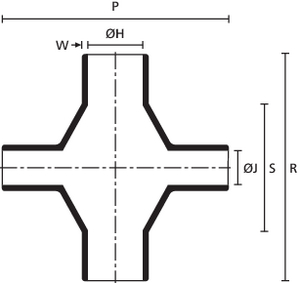

∅H max b 9.7mm

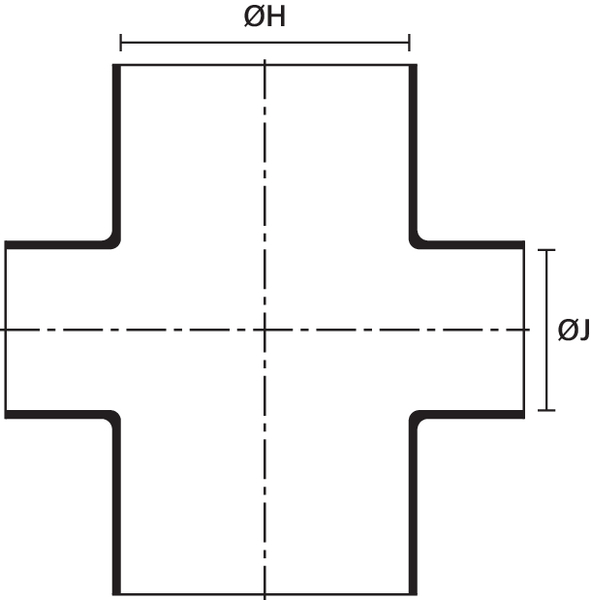

∅H min a 19.3mm
∅J max b 9.7mm
∅J min. a 19.3mm
Dielectric Strength 14kV/mm
Dielectric Strength test method ASTM D2671
Flammability ASTM D635
Minimum Shrink Temperature +135 °C
Nato number 5970-99-798-4397
Operating Temperature -55 °C to +135 °C
ROHS compliant Yes
Specifications
Tensile Strength 13MPa
Country of Origin GB
GTIN-13 / EAN 5022660442674
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
