2-Way Outlet Shapes, VG style
Art.-No. 402-03019 | 203-1-HW24-PO-X-BK | Details

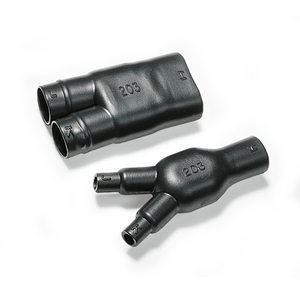

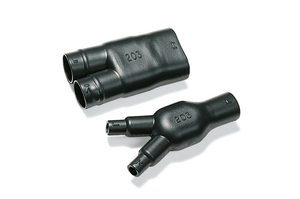

Two-way outlet shape 223-2 supplied / fully recovered.

Mechanical tension relief in cable harnesses

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

2-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, E4500, CHG900
Colour	Black (BK)
Local order number	203-1-HW24
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	203-1-HW24-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 200 Series
Product Group	2-Way Outlet Shapes, VG style
Type	203-1-HW24
Variant	For 2-core cables

Product Dimensions


HW ± 30%	2.5mm
JW nom	1.5mm
JW/KW ± 30%	1.5mm
P ± 10%	80mm
P ± 15%=overall length	80mm
R nom	38mm
R ± 10%	43mm
S nom	43mm
∅H max b	12mm
∅H min a	27mm
∅J max b	6mm
∅J min. a	13mm
∅J/K max. b	6mm
∅J/K min. a	13mm
∅K max. b	6mm
∅K min. a	13mm

Downloads

Specifications

Adhesive	W24
Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660443725

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
