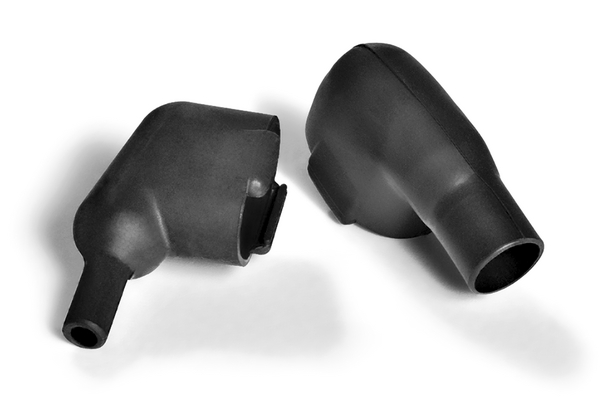

Connector Cover for Min-D Series
Art.-No. 421-02003 | 2102-1-B7WM250-PO-X-BK | Details

2101-1 supplied / fully recovered.

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Connector Cover for Min-D Series >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Application Tool	H6100, CHG900
Colour	Black (BK)
Local order number	2102-1-B7WM250
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	2102-1-B7WM250-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 2100 Series, with 90° entry
Product Group	Connector Cover for Min-D Series
Type	2102-1-B7WM250

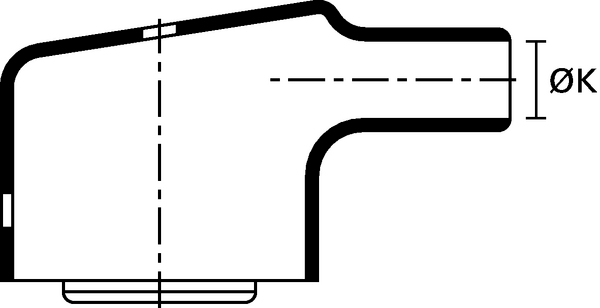

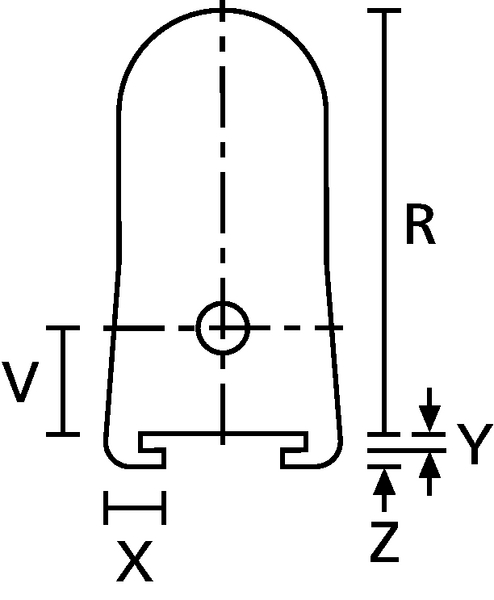

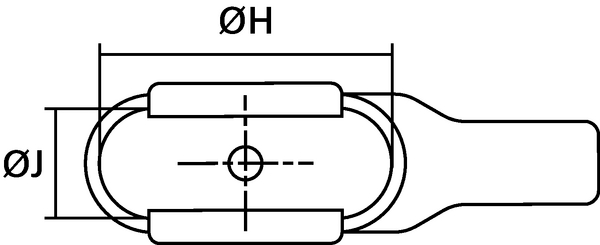

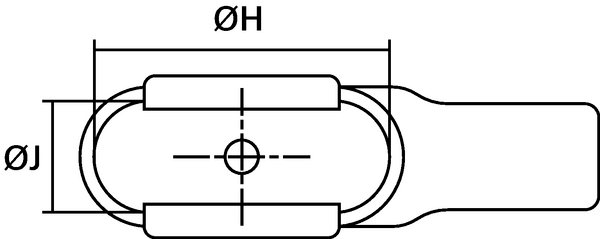

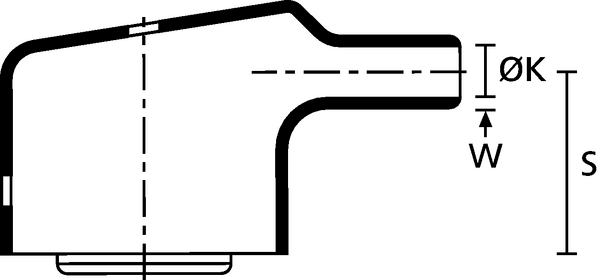

Product Dimensions


Angle	90
Flexibility	Semi rigid
P nom.	30.7mm
P ± 10%	30.7mm
R nom	24.6mm
R ± 10%	24.6mm
S ± 10%	18.5mm
V ± 10%	15mm
W ± 20 %	1mm
∅H max b	28.2mm
∅H min a	28.1mm
∅J max b	10.7mm
∅J min. a	10.6mm
∅K max. b	5.3mm
∅K min. a	10.1mm

Downloads

Specifications

Adhesive	WM250
Dielectric Strength	14kV/mm
Dielectric Strength test method	ASTM D2671
Minimum Shrink Temperature - °C	+135 °C
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	13MPa

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660444944

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
