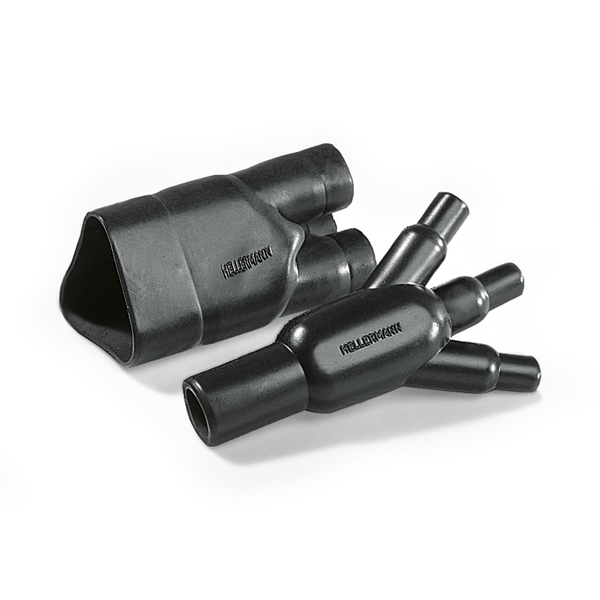

3-Way Outlet Shapes, VG style
Art.-No. 403-04023 | 304-1-G-PO-X-BK | Details

304-1-G supplied / fully recovered.

Cable strain relief and mechanical protection at harness transition points
All outlets clearly marked to aid orientation during installation

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

3-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Local order number	304-1-G
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	304-1-G-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 300 Series
Product Group	3-Way Outlet Shapes, VG style
Shrink Ratio	up to 3:1
Type	304-1-G
Variant	For 3-core cables

Product Dimensions


Flexibility	Semi rigid
HW ± 20%	2.5mm
JW ± 30%	1.5mm
P ± 10%	93mm
R ± 10%	50mm
S ± 10%	50mm
T ± 10%	43mm
W ± 20 %	1.5mm
∅H max b	13.5mm
∅H min a	27mm
∅J max b	7mm
∅J min. a	13mm
∅J/K/L max. b	7mm
∅J/K/L min. a	13mm
∅K max. b	7mm
∅K min. a	13mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Minimum Shrink Temperature	+135 °C
Nato number	5970-12-188-2159
Operating Temperature	-75 °C to +150 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660451881

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
