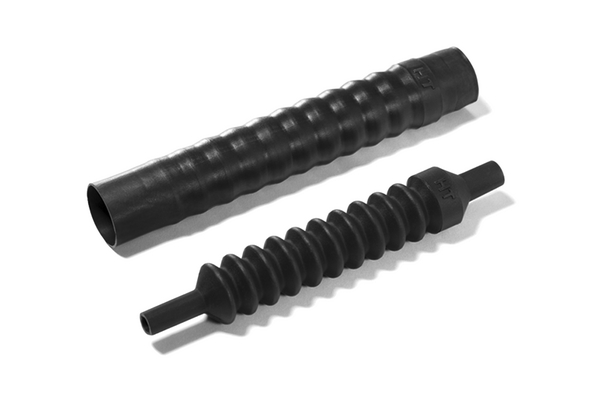

Low Profile Convolute Boots
Art.-No. 422-00015 | 313C722-9-PO-X-BK | Details

313C722-774 Series supplied / fully recovered.

Package size

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Convolute Boots >

Base Data

Application	Military and general performance harnessing.
Application Tool	H6100, E4500, CHG900
Colour	Black (BK)
Local order number	313C722-9-WM250
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	313C722-9-PO-X-BK
Pack Cont.	100pcs.
Package Content packed in	Bag
Product Family	Helashrink 313C Series, with adapter lip
Product Group	Low Profile Convolute Boots
Shrink Ratio	3:1
Type	313C722-9
Variant	For plug

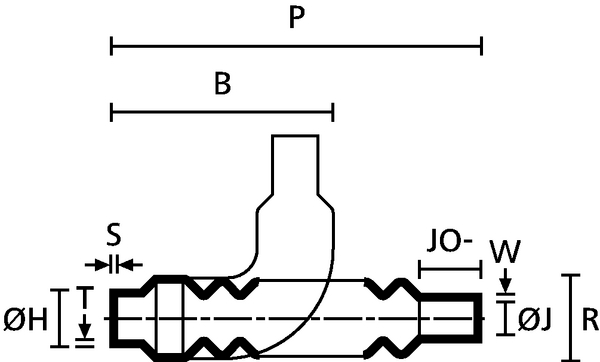

Product Dimensions


Flexibility	Flexible
HW ± 1.5	.3mm
JO ± 1.8	17.3mm
P ± 10%	12.6mm
R max	21.1mm
S ± 0.5	1.5mm
S ± 10%	17.5mm
T ± 0.5	1.3mm
T ± 0.8	1.3mm
W min.	1.5mm
Weight/Unit	0.006kg
∅H max b	6.9mm
∅H min a	14.2mm
∅J max b	4.8mm
∅J min. a	11.1mm

Downloads

Specifications

Dielectric Strength	20kV/mm
Flammability	ASTM D635
Minimum Shrink Temperature - °C	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660453014

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
