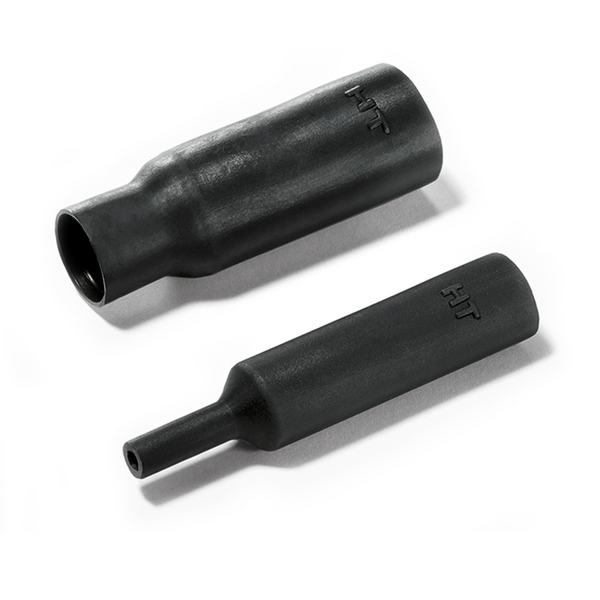

Low Profile Shim Boots
Art.-No. 422-10212 | 313E455-8-PEEX-BK | Details

313E445-457 Series supplied / fully recovered.

Used to build up or shim a cable diameter
Facilitates better fit for components in cable harness

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Shim Boots >

Base Data

Application	Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Colour	Black (BK)
Local order number	313E455-8
Material	Polyester elastomer cross-linked (PEEX)
PART DESCRIPTION	313E455-8-PEEX-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 313E Series, without adapter lip
Product Group	Low Profile Shim Boots
Shrink Ratio	3:1
Type	313E455-8
Variant	For 3-core cables

Product Dimensions


Flexibility	Flexible
HO ± 10%	41.1mm
HW ± 25%	1.5mm
JW ± 25%	1.5mm
P ± 10%	63.5mm
R ± 10%	27.9mm
S ± 10%	15.7mm
Weight/Unit	0.006kg
∅H max b	12.7mm
∅H min a	2.8mm
∅J max b	9.9mm
∅J min. a	2.6mm

Downloads

Specifications

Flammability	ASTM D635
Minimum Shrink Temperature	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications
Tensile Strength	12MPa
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660691423

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
