Low Profile Right Angle Boots
Art.-No. 422-30403 | 333F374-6-PO-X-BK | Details

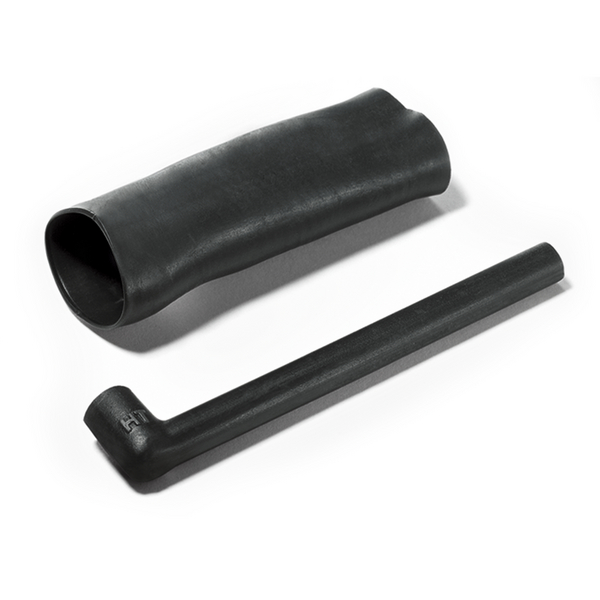

333F322-385 series as supplied / recovered.

Lightweight strain relief for small cable diameters requiring high shrink ratio
Right angle connector housing with long cable entry and inner lip

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Right Angle Boots >

Base Data

Application	Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Colour	Black (BK)
Local order number	333F374-6
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	333F374-6-PO-X-BK
Pack Cont.	5pcs.
Package Content packed in	Bag
Product Family	Helashrink 333F-Series, with adapter lip, 90° angle
Product Group	Low Profile Right Angle Boots
Shrink Ratio	3:1
Type	333F374-6
Variant	For plug

Product Dimensions


Angle	90
Flexibility	Flexible
HW ± 1.5	1.7mm
JW ± 0.8	1.5mm
P ± 10%	213.6mm
R ± 15%	27.4mm
S ± 1.5	1.7mm
T ± 0.8	1.8mm
Weight/Unit	0.022kg
∅H max b	34mm
∅H min a	45.2mm
∅J max b	12.1mm
∅J min. a	38.3mm

Downloads

Specifications

Flammability	ASTM D635
Minimum Shrink Temperature	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	No

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660673306

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
