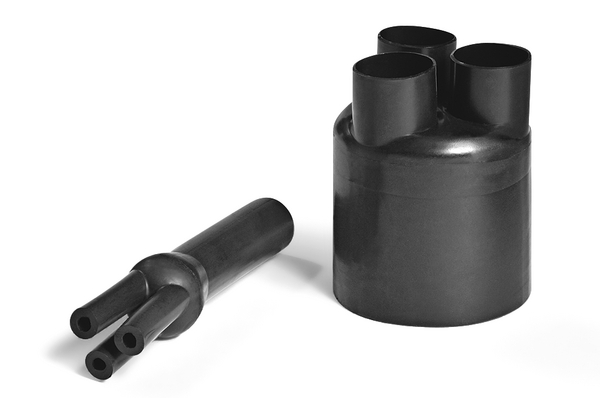

3-Way Outlet Shapes, Breakout Boots
Art.-No. 403-41005
| 341-1-B8W2-PO-X-BK
|
Details

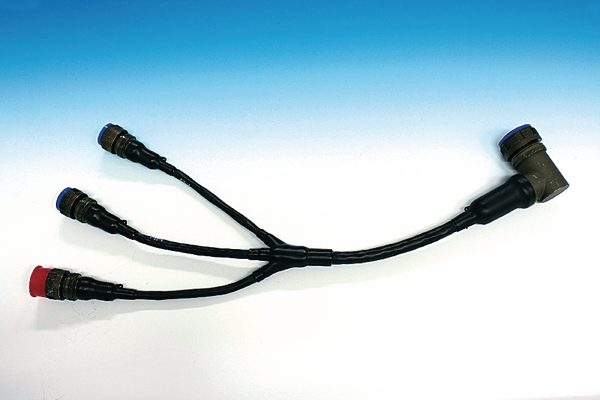

- Easy, time-saving insulation of cable branch point where it splits into single wires
- Adhesive is applied to relieve mechanical tension in cable harnesses
Request your individual offer now
Request quote
More products in this product group:

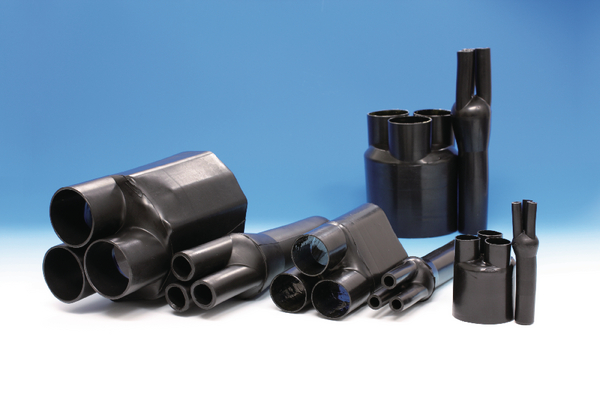

| Application | Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables. |
| Application Tool | H6100, E4500, CHG900 |
| Colour | Black (BK) |
| Local order number | 341-1-B8W2 |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | 341-1-B8W2-PO-X-BK |
| Pack Cont. | 1pc. |
| Package Content packed in | Bag |
| Product Family | Helashrink 300 Series, in line, low voltage |
| Product Group | 3-Way Outlet Shapes, Breakout Boots |
| Shrink Ratio | up to 3:1 |
| Type | 341-1-B8W2 |
| Variant | For 3-core cables |
|
|
| Bundle Diameter max (metric) | 400.0mm |
| Bundle ∅ min. | 240mm |
| Flexibility | Semi rigid |

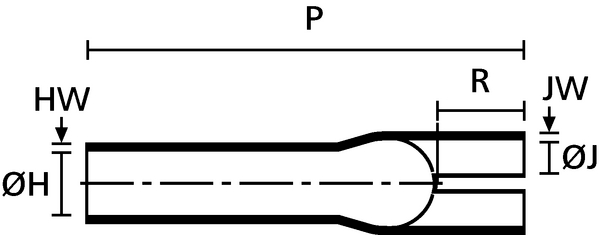

| HW ± 20% | 3.8mm |
| JW ± 20% | 3.8mm |
| P ± 10% | 283mm |
| R ± 10% | 71mm |
| Recov. ∅ d | 59.0mm |

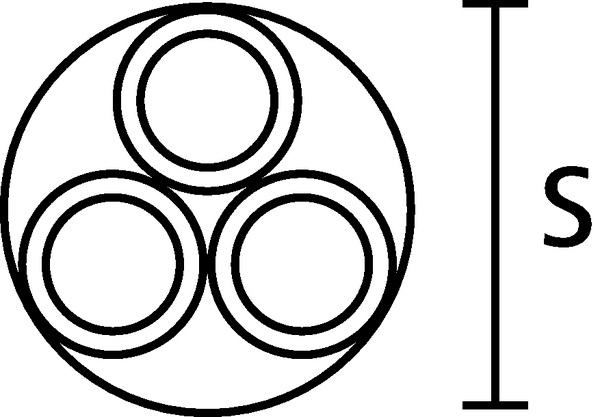

| S nom | 75.0mm |
| Supplied ∅ D | 125.0mm |
| Wire Size Range (mm²) | 240-400mm |

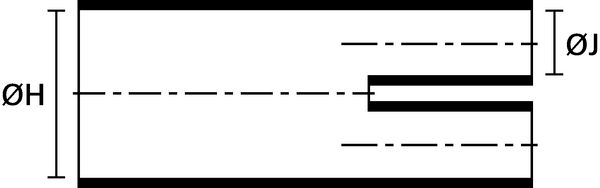

| ∅H max b | 59mm |
| ∅H min a | 125mm |
| ∅J max b | 25.4mm |
| ∅J min. a | 50.8mm |
| ∅K max. b | 25.4mm |
| ∅K min. a | 50.8mm |
Download
| Country of Origin | GB |
| GTIN-13 / EAN | 5022660457883 |
| Packaging 1 - Weight (kg) | 0.279kg |
| Packaging 3 - Height (m) | 0.30m |
| Packaging 3 - Length (m) | 0.40m |
| Packaging 3 - Qty | 18 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 5.52kg |
| Packaging 3 - Width (m) | 0.40m |
| Packaging 4 - Height (m) | 1.40m |
| Packaging 4 - Length (m) | 1.20m |
| Packaging 4 - Qty | 216 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.344m³ |
| Packaging 4 - Weight (kg) | 86.0kg |
| Packaging 4 - Width (m) | 0.80m |
