Low Profile Transition Boots
Art.-No. 422-60203 | 573H534-9-PO-X-BK | Details

573H532-535 Series supplied / fully recovered.

For cable harness breakouts or transitions
Strain relief, sealing and mechanical protection

Package size

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Low Profile Transition Boots >

Base Data

Application	Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Colour	Black (BK)
Local order number	573H534-9W24
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	573H534-9-PO-X-BK
Pack Cont.	1
Package Content packed in	Bag
Product Family	Helashrink 573H Series, 1 to 3 cables
Product Group	Low Profile Transition Boots
Shrink Ratio	3:1
Type	573H534-9
Variant	For 3-core cables

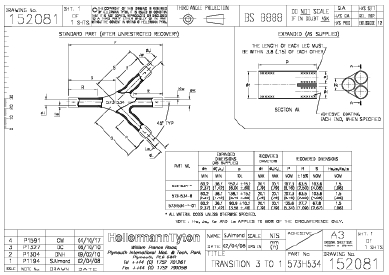

Product Dimensions


Flexibility	Flexible
HO,JO, KO & LO ± 3.8	63.5mm
P nom.	207.2mm
P ± 10%	207.2mm
R/S/T nom	103.6mm
W nom.	1.5mm
Weight/Unit	0.043kg
∅H max b	20mm
∅H min a	60.1mm
∅J max b	20mm
∅J min. a	36mm
∅J/K/L max. b	20mm
∅J/K/L min. a	36mm
∅K max. b	20mm
∅K min. a	36mm

Downloads

Specifications

Dielectric Strength	20kV/mm
Dielectric Strength test method	IEC 243
Flammability	ASTM D635
Minimum Shrink Temperature	+100 °C
Operating Temperature	-55 °C to 120 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660183362

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721

Accessories

H6100 391-00110
Electrical Hot Air Tool
