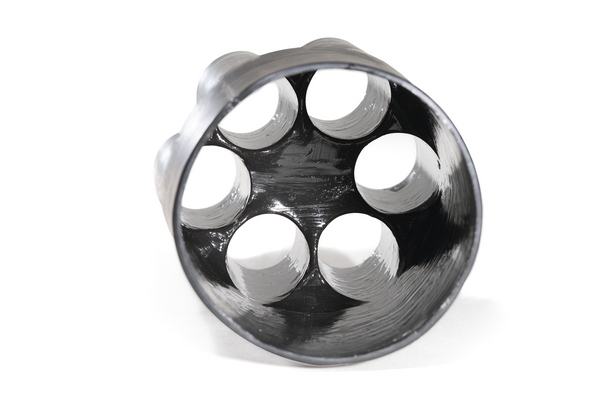

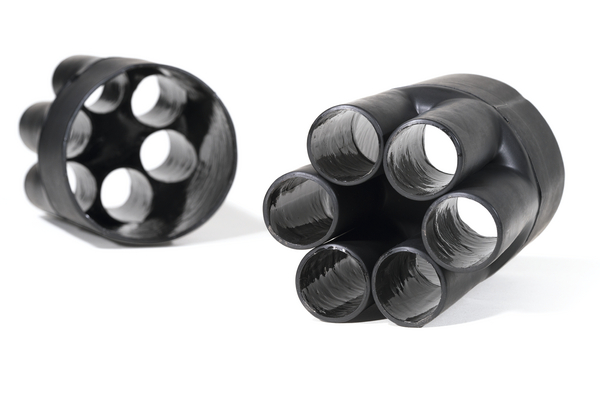

6-Way Outlet Shapes, Breakout Boots
Art.-No. 406-08013 | 608-2-JW1-PO-X-BK | Details

600 Series supplied / fully recovered.

Cable breakout boots for insulating and sealing cable crotch or conduit system
Excellent resistance to abrasion and weathering

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

6-Way Outlet Shapes, Breakout Boots >

Base Data

Application	Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakout to be used for both interior and exterior applications. they offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2,3,4,5 and 6 conductor cables.
Colour	Black (BK)
Local order number	608-2-JW1
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	608-2-JW1-PO-X-BK
Pack Cont.	1pc.
Package Content packed in	Bag
Product Family	Helashrink 600 Series, in line, low voltage
Product Group	6-Way Outlet Shapes, Breakout Boots
Shrink Ratio	up to 3:1
Type	608-2-JW1
Variant	For plug

Product Dimensions


Flexibility	Flexible
HW ± 20%	3.2mm
JW ± 20%	3.2mm
P ± 10%	152mm
R ± 10%	56mm
S nom	46mm
Weight/Unit	0.09kg
∅H max b	37mm
∅H min a	61mm
∅J max b	9mm
∅J min. a	21mm

Downloads

Specifications

Adhesive	W1
Dielectric Strength	15kV/mm
ELV compliant Dir. Art. 4 (2)	YES
Flammability	ASTM D635
Hazardous Goods	No
Minimum Shrink Temperature	+135 °C
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	19MPa

Logistics and Packaging


Country of Origin	GB
Customs Number	39174000
GTIN-13 / EAN	5022660718526
Packaging 1 - Height (m)	0.007m
Packaging 1 - Length (m)	0.021m
Packaging 1 - Qty	25
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0m³
Packaging 1 - Weight (kg)	2.250001kg
Packaging 1 - Width (m)	0.0125m

More Information

ETIM 7.0 Key	EC002464
ETIM 8.0 Key	EC002464
ETIM 9.0 Key	EC002464
UNSPSC Key	39121721
