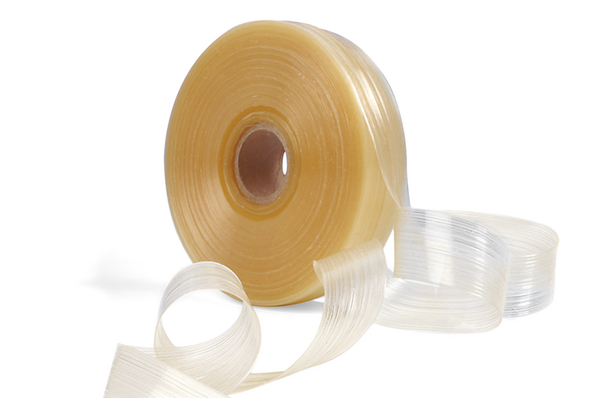

Hot Melt Tape reel 50 m
Art.-No. 354-02259 | HMT200A-EVA-CL |  Details

HMT200A-Tape.

    • Hot melt tape flows when heated to seal against moisture
    • For heat shrink tubing and mouldings
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet

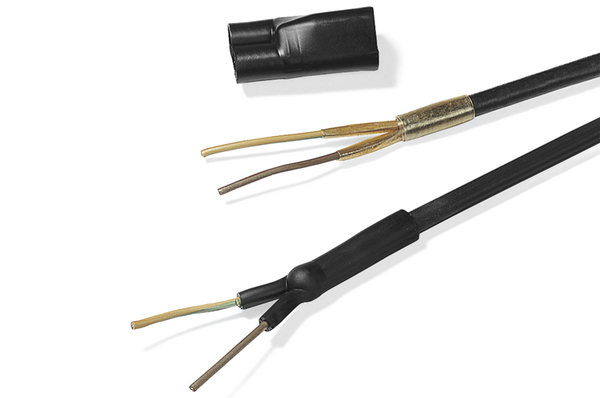

    Application Designed for use with heat shrink sleeving and mouldings.

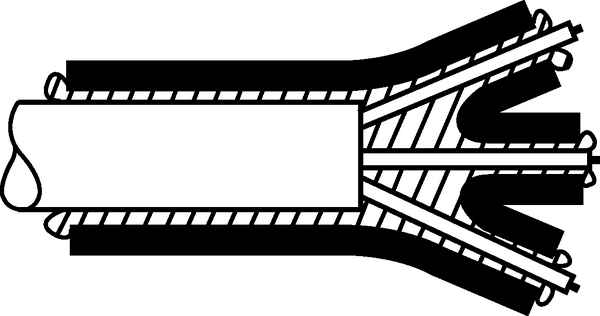

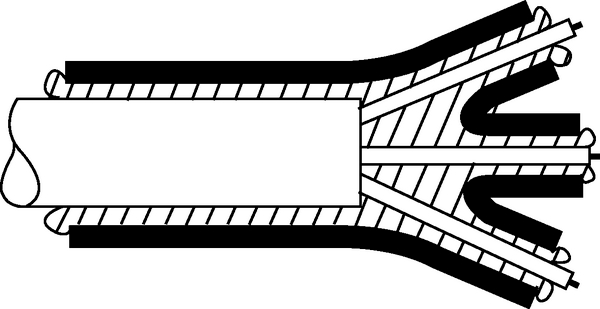

    Application Method 1. Clean and preheat the part to be protected. 2. Wrap the tape around the part and overlap. 3. Put the tubing or heat shrinkable shape over the tape and shrink down.
    Colour Translucent (TT)
    Curing Method Cold
    Local order number HMT200A
    Material Ethylenevinylacetate (EVA)
    PART DESCRIPTION HMT200A-EVA-CL
    Pack Cont. 50m
    Package Content packed in Reel
    Product Family HMT200A
    Product Group Hot Melt Tape for Heat Shrinkable Tubing and Shapes
    Short Description Hot Melt Tape reel 50 m
    Type HMT200A

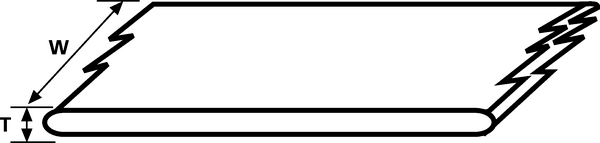

    Length (L) 50.0m
    Thickness (T) 0.25mm
    Weight/Unit 0.00642kg
    Width (W) 25.0mm
    Adhesive EVA hot melt adhesive
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    Insulating (Yes/No) No
    Nato number 5970-99-630-9679, 5975-12-152-8605
    Operating Temperature -55 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Suitable for high voltage (Yes/No) No
    Country of Origin GB
    Customs Number 39201089
    GTIN-13 / EAN 5022660159718
    Packaging 1 - Height (m) 0.033m
    Packaging 1 - Length (m) 0.155m
    Packaging 1 - Qty 50
    Packaging 1 - Type Reel
    Packaging 1 - Volume (m³) 0.00074m³
    Packaging 1 - Weight (kg) 0.321kg
    Packaging 1 - Width (m) 0.145m
    Reel Length 50.0m
    Reel Length (imperial) 164ft
    ETIM 7.0 Key EC000529
    ETIM 8.0 Key EC000529
    ETIM 9.0 Key EC000529
