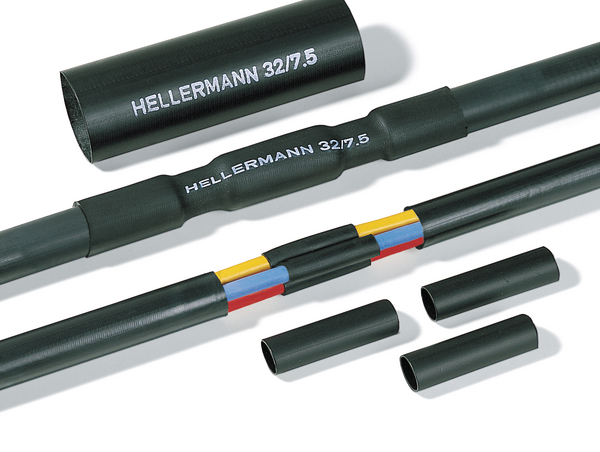

Low Voltage Jointing Kit
Art.-No. 475-00216 | LV-Kit 2-PO-X-BK |  Details

    • Contains necessary parts to make a waterproof connection with 4 inner sleeves and 1 outer sleeve for water tight protection
    • Sleeves are glued inside to make a polite and effective sealing against moisture
    • Contains the same sleeves as LV-Kit Standard, plus one additional outer sleeve for extra protection
    Add to watchlist

    Request your individual offer now

     Request quote
    Application LV- Kit is used for jointing all types of low-voltage Cu/Al cables with plastic insulation in order to meet Norwegian Standard Ref. 5 jak (2/89) “EVERKSSKJØTER”
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    No. of Inner sleeves 4
    No. of Wires 4
    PART DESCRIPTION LV-Kit 2-PO-X-BK
    Pack Cont. 1Set
    Package Content packed in kit
    Short Description Low Voltage Jointing Kit
    Shrink Ratio up to 3:1
    Type LV-Kit 2
    Longitudinal Change After Shrinkage -10% max.
    Wire Size Range (mm²) 10.0-25.0mm
    Dielectric Strength 10kV/mm
    Dielectric Strength test method IEC 684 P2
    Flammability ASTM D876 (outer layer only)
    Minimum Shrink Temperature +135 °C
    Operating Temperature -35 °C to +75 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39173290
    GTIN-13 / EAN 5016371036765
    Packaging 1 - Qty 1
    Packaging 1 - Type set
    ETIM 7.0 Key EC001169
    ETIM 8.0 Key EC001169
    ETIM 9.0 Key EC001169
