Pinched End Cap 3:1 3/1 for Low Voltage black
Art.-No. 416-00000
| PEC-3/1-PO-X-BK
|
Details
- Thin-walled (time, cost and weight saving)
- 3:1 shrink ratio (wide range of applications, high contact pressure)
- With thermoplastic (hot-melt) adhesive
- Continous operating temperature up to +125°C
- Self-extinguishing
Request your individual offer now
Request quote
More products in this product group:

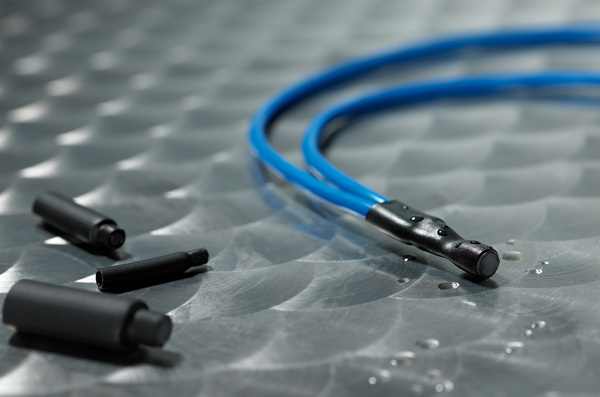

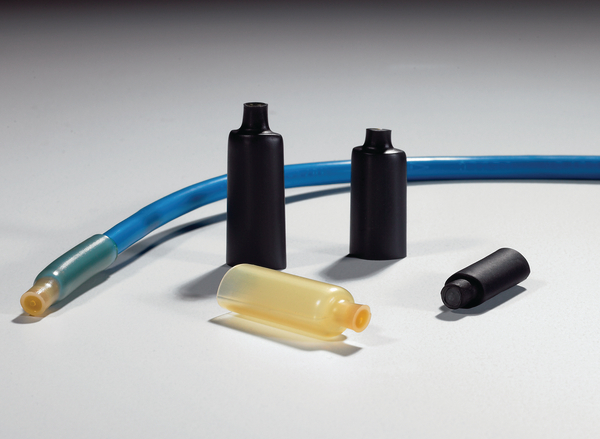

| Application | Pinched end caps are pieces of heat shrink tubing shrunk onto a filler to create an end cap. Our heat shrink caps are designed to seal and protect wire ends, such as stub splices. |
| Colour | Black (BK) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | PEC-3/1-PO-X-BK |
| Pack Cont. | 50pcs. |
| Package Content packed in | Bag |
| Product Family | PEC - thin wall, adhesive, self-extinguishing |
| Product Group | 3:1 heat shrink caps |
| Short Description | Pinched End Cap 3:1 3/1 for Low Voltage black |
| Shrink Ratio | 3:1 |
| Type | PEC-3/1 |
| HW ± 20% | 1.0mm |

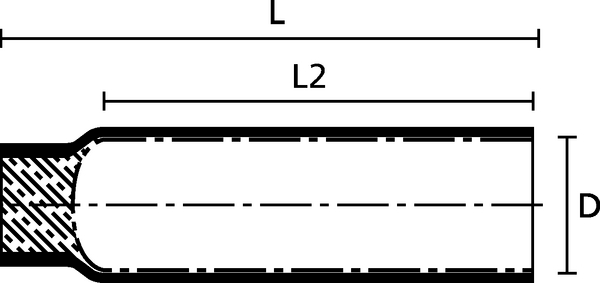

| Length (L) | 25.0mm |
| Length (L2) | 20.0mm |
| Longitudinal Change After Shrinkage | -10% max. |
| P ± 10% | 25.0mm |

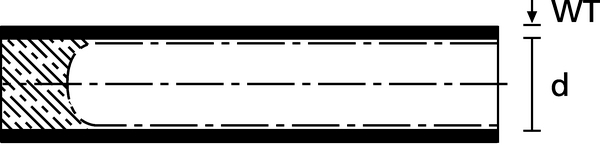

| Recov. ∅ d | 1.0mm |
| Recov. ∅ d max. (imperial) | .04" |
| Supplied ∅ D | 3.0mm |
| Supplied ∅ D min. (imperial) | .12" |
| Thickness of Adhesive (TA) nom. | 0.5mm |
| Tolerance +/- | ±10% |
| Tube Shape | Round |
| Wall (WT) | 1.0mm |
| Wall (WT) (imperial) | .04" |
| Weight/Unit | 0.000232kg |
| ∅H max b | 3.0mm |
| ∅H min a | 1.0mm |
Download
| Dielectric Strength | 15kV/mm |
| Dielectric Strength test method | IEC 684 P2 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break |
|
| Flammability | self-extinguishing in 30 seconds according to SAE-AMS-DTL-23053/4 |
| Hazardous Goods | No |
| Insulation Class | A (VDE 0530) |
| Minimum Shrink Temperature | +120 °C |
| Operating Temperature | -45 °C to +125 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Softening Point Adhesive | +85 °C |
| Specifications |
|
| Tensile Strength | 10.4MPa |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| Volume Resistance | 10¹⁴ Ω cm |
| Volume Resistance test method | ASTM D2671 |
|
|
|
| Country of Origin | CN |
| Customs Number | 39174000 |
| GTIN-13 / EAN | 4031026323251 |
| Packaging 1 - Height (m) | 0.01m |
| Packaging 1 - Length (m) | 0.13m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00009m³ |
| Packaging 1 - Weight (kg) | 0.0116kg |
| Packaging 1 - Width (m) | 0.071m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Qty | 16000 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Weight (kg) | 3.877kg |
| Packaging 2 - Width (m) | 0.267m |
| Reel Length | .04m |
