25/12/2024

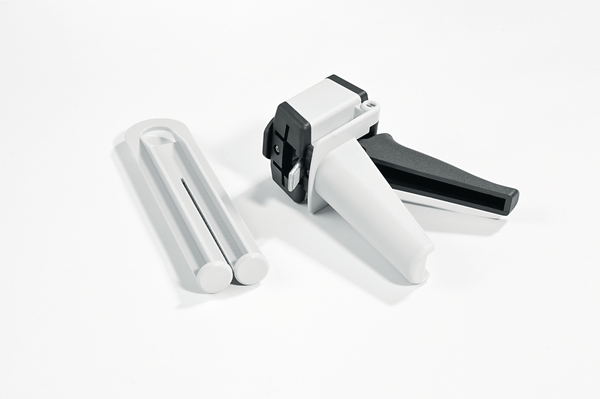

Dosing Gun for two-component adhesive
Art.-No. 627-95003 | V9500 Applicator Gun-PO-GY |  Details

V9500 Applicator Gun.

    • For clean processing and individual metering of V9500 adhesive
    • Use with dual cartridges (Article-No 627-95002)
    • Lockable cartridges with or without processing set
    • Re-usable cartridges, even after lapse of several days
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Grey (GY)
    Description Applicator gun
    Local order number V9500APPLICATOR
    Material Polyolefin compound unlinked (PO)
    PART DESCRIPTION V9500 Applicator Gun-PO-GY
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family V9500 Dosing Gun
    Product Group Two-component adhesive for heat shrinkable tubing and shapes
    Short Description Dosing Gun for two-component adhesive
    Type V9500 Applicator Gun
    Curing Time 24 hours at +25 °C, 2 hours at +85 °C
    Weight/Unit 0.205kg
    Curing Temperature +135 °C
    Designation as per VG-Norm VG 95343 T15 DA
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Insulating (Yes/No) No
    Nato number 5120-12-408-8032
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Specifications VG 95343-15:2019-08
    Country of Origin CN
    Customs Number 82055980
    GTIN-13 / EAN 4031026185682
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.2m
    Packaging 1 - Qty 1
    Packaging 1 - Type Carton
    Packaging 1 - Volume (m³) 0.0014m³
    Packaging 1 - Weight (kg) 0.215kg
    Packaging 1 - Width (m) 0.1m
    ETIM 7.0 Key EC000529
    ETIM 8.0 Key EC002163
    ETIM 9.0 Key EC002163
