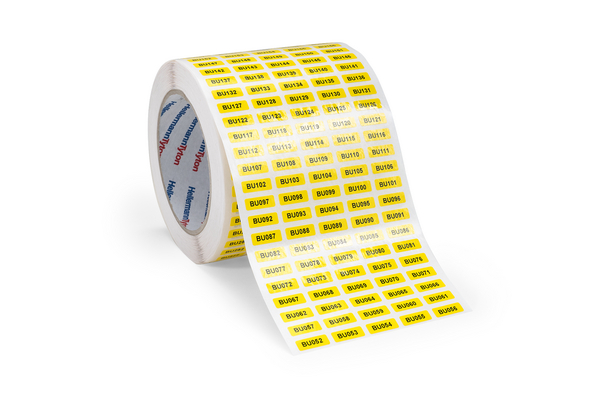

Label, yellow, thermal transfer print, 6.00x16.50mm, 20000pcs.
Art.-No. 596-01211 | TAG16-06TE-1211-YE Details

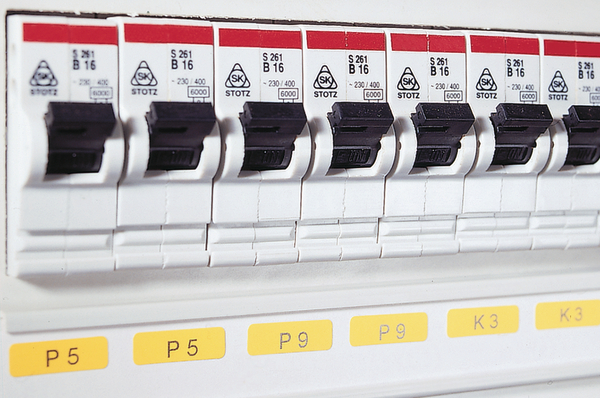

  • Suited to labelling electrical panels
  • Where high label visibility is required
  • Partially suitable for critical surfaces
  • Rounded corners ensure better long term durability of adhesion

Request your individual offer now

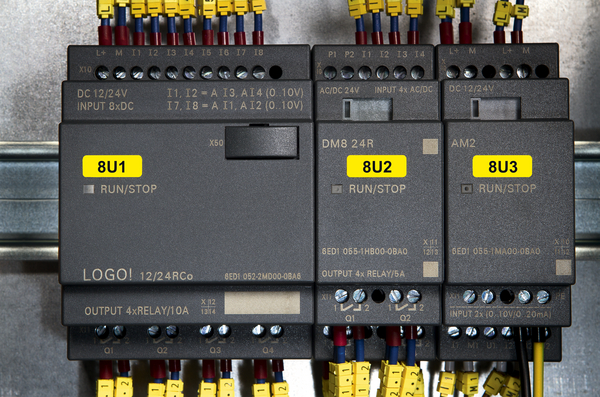

Application These labels are suitable for the permanent identification of components and preassembled units within electrical industry as well as asset identification. Print with HellermannTyton’s premium range of thermal transfer printers and ribbons for optimum print results. They can also be used in the design and setup as well as in the repair and expansion of control cabinets and control units. Due to the structure of the vinyl label they are suitable for rougher surfaces.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Colour Yellow gloss (GSYE)
Colour Marking Field Yellow gloss (GSYE)
Local order number TAG16-06TE-1211-YE
Material Type 1211, Vinyl, yellow gloss (1211)
Mech. Material Properties permanent adhesive, suitable for critical surfaces
PART DESCRIPTION TAG16-06TE-1211-YE
Pack Cont. 20000pcs.
Package Content packed in Reel
Product Family Helatag 1211
Product Group Labels for control panel identification, thermal transfer
Self adhesive (Yes/No) Yes
Short Description Labels for Control Panel Identification for Thermal Transfer Printing 16.5x6 mm yellow
Type TAG16-06TE
HR 19.05mm
Height (H) 6.00mm
Print Method thermal transfer print
Thickness of Foil 84
Thickness of foil test method ISO 534
VR 8.89mm
Weight/Unit 0.000015kg
Width (W) 16.50mm
Width of Liner (WL) 101.60mm
Adhesive Acrylic
Curing Temperature from +5 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Initial tack 11N/25 mm
Initial tack FINAT FTM 9
Operating Temperature -20 °C to +80 °C
Peel strength 250 N/m
Peel strength test method FINAT FTM 2
Pre-Printed No
ROHS compliant Yes
Recommended Ribbon Type TT822OUT
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026296258
Labels per Row 5pcs.
Packaging 1 - Height (m) 0.115m
Packaging 1 - Length (m) 0.157m
Packaging 1 - Qty 20000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00265
Packaging 1 - Weight (kg) 0.300001kg
Packaging 1 - Width (m) 0.147m
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
UNSPSC Key 39121702
