Label, white, thermal transfer print, 6.35x22.86mm, 10000pcs.
Art.-No. 596-16823 | TAG16TD3-823-WH | Details

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

This product is part of:

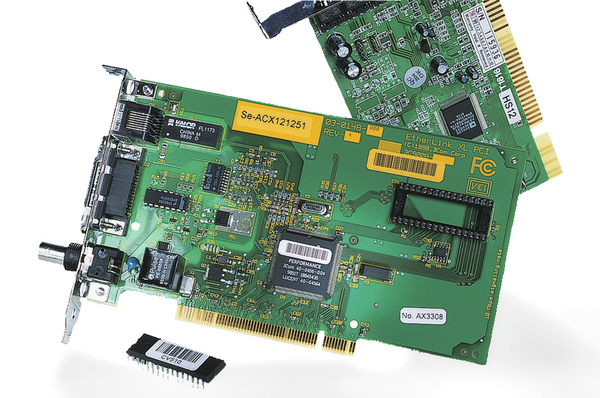

Application	Helatag 823 labels have been designed to fit all areas when it comes to marking components on PCBs. The specially formulated adhesive labels give the highest quality print clarity when printed on thermal transfer printers. Designing and printing labels is simple and users can quickly print out professional labels in a matter of moments when using TagPrint Pro labelling software.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Excellent resistance against alcohol, petrol, solvents, butanol, ethyl- and butylcellosolve solvents, battery acid
Colour	White gloss (GSWH)
Material	Type 823, Polyester, white (823)
Mech. Material Properties	according to ESD requirements of EIA 625 and 541
PART DESCRIPTION	TAG16TD3-823-WH
Pack Cont.	10000pcs.
Package Content packed in	Reel
Product Family	Helatag 823, PCB labelling
Product Group	Printed circuit board labels (ESD), thermal transfer
Self adhesive (Yes/No)	Yes
Short Description	Identification of parts and circuit boards for thermal transfer print 22.86x6.35mm white
Type	TAG16TD3


HR	25.40mm

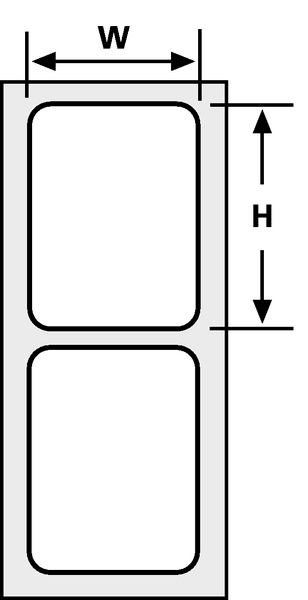

Height (H)	6.35mm
Print Method	thermal transfer print
Thickness (T)	51.0µm
Thickness of Foil	51
Thickness of foil test method	ASTM D3652-83
VR	8.89mm
Weight/Unit	0.000034kg
Width (W)	22.86mm
Width of Liner (WL)	80.00mm

Adhesive	Acrylic
Curing Temperature	from +10 °C
ELV compliant Dir. Art. 4 (2)	YES
Halogen-free	Yes
Hazardous Goods	No
Initial tack	780g/cm²
Initial tack	ASTM D2979-71
Operating Temperature	-40 °C to +150 °C
Peel strength	550 N/m
Peel strength test method	PSTC 7
Pre-Printed	No
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT
Shear strength	25h
Shear strength test method	ASTM D3654
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications

Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026211305
Labels per Row	3pcs.
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.165m
Packaging 1 - Qty	10000
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00223m³
Packaging 1 - Weight (kg)	0.450001kg
Packaging 1 - Width (m)	0.09m
Packaging 3 - Height (m)	0.24m
Packaging 3 - Length (m)	0.55m
Packaging 3 - Qty	120000
Packaging 3 - Type	Carton
Packaging 3 - Volume (m³)	0.0515m³
Packaging 3 - Weight (kg)	5.9kg
Packaging 3 - Width (m)	0.39m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
