Label, white, thermal transfer print, 19.05x50.80mm, 2500pcs.
Art.-No. 596-52932 | TAG51-19TT-932-WH | Details

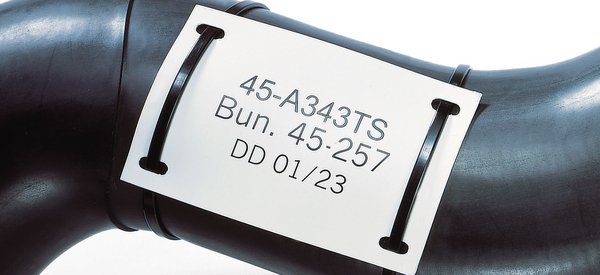

Ideal for use in identifying medium to large size cable bundles for either permanent or temporary use
Label can be passed through the printer twice so giving double sided print capability
Very good UV resistance properties and can therefore be used externally

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	Apply Helatag 932 with both permanent or releasable cable ties as required
Chem. Material Properties	resistance against alcohol, water, oils, acetone, tulone and petrols
Colour	White (WH)
Key product features	non-adhesive
Material	Type 932, Polyolefin, white (932)
Mech. Material Properties	flexible material ideally suited for cable marking
PART DESCRIPTION	TAG51-19TT-932-WH
Pack Cont.	2500pcs.
Package Content packed in	Reel
Product Family	Helatag 932
Product Group	Non-adhesive cable marking labels, thermal transfer
Self adhesive (Yes/No)	No
Shape of Tag	3
Type	TAG51-19TT


Height (H)	19.05mm
Print Method	thermal transfer print
Print Method (Alternative)	laser beam print
Thickness of Foil	280
Thickness of foil test method	ASTM D3652-83
VR	19.05mm
Weight/Unit	0.000296kg
Width (W)	50.80mm

Curing Temperature	from 0 °C
ELV compliant Dir. Art. 4 (2)	YES
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +90 °C
Pre-Printed	No
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Specifications	BS-2848 Type 3 Class BST
Test Method Tensile Strength	DIN 53455

Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026211039
Labels per Row	1
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.165m
Packaging 1 - Qty	2500
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.00223m³
Packaging 1 - Weight (kg)	0.740001kg
Packaging 1 - Width (m)	0.09m
Packaging 3 - Height (m)	0.24m
Packaging 3 - Length (m)	0.55m
Packaging 3 - Qty	30000
Packaging 3 - Type	Carton
Packaging 3 - Volume (m³)	0.0515m³
Packaging 3 - Weight (kg)	9.38kg
Packaging 3 - Width (m)	0.39m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended.
