Label, white, thermal transfer print, 36.50x76.20mm
Art.-No. 596-65892 | TAG65TD1-892-WH |

Copied

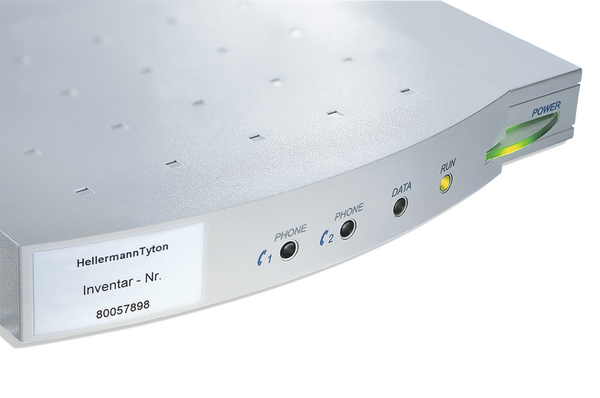

Helatag label for a permanent asset identification.

    This product is not available anymore.

    Alternative product available

    • Adhesive labels made of vinyl, white gloss
    • Specially tailored to the sizes of IT marking ties and IMP tag range
    • Suitable for permanent marking of components and devices on different surfaces
    • Adheres to rounded surfaces
    • Excellent print performance using TT822OUT ribbon
    • Print with TT4000+, XXXNEW for best results
    • Easy label design with TagPrint Pro2 (version 3 coming soon)
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The use of our specially formulated adhesive labels printed on thermal transfer printers give the highest quality print clarity. The range of materials are complemented by ribbons developed to suit the needs of most users.
    The production of labels is very simple. All that is needed is the required label to be selected from our industry leading software TagPrint Pro.
    Chem. Material Properties self extinguishing, resistant to oils, water and solvents
    Colour White (WH)
    Key product features weather resistant, chemical resistance
    Material Type 892, Vinyl, white (892)
    PART DESCRIPTION TAG65TD1-892-WH
    Package Content packed in pcs.
    Product Family Thermal Transfer Labels
    Product Group Inventory and Name Plates Labels
    Self adhesive (Yes/No) Yes
    Type TAG65TD1
    H printable 36.50mm
    Height (H) 36.50mm
    Print Method thermal transfer print
    Thickness (T) 83µm
    VR 40.64
    Weight/Unit 0.00081kg
    Width (W) 76.20mm
    Width of Liner (WL) 82.00mm
    Adhesive Acrylic
    Curing Temperature from +10 °C
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +80 °C
    Pre-Printed No
    ROHS compliant Yes
    Specifications
    Specifications BS-2848 Type 3 Class BST
    Country of Origin DE
    Customs Number 39199080
    GTIN-13 / EAN 4031026212159
    Labels per Row 1
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 0.81kg
    Packaging 2 - Qty 1
    Packaging 2 - Type Carton
    Packaging 2 - Weight (kg) 0.001kg
    Packaging 3 - Qty 1000
    Packaging 3 - Type Carton
    Packaging 3 - Weight (kg) 0.81kg
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Type pallet
    Packaging 4 - Weight (kg) 21.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC001288
    ETIM 8.0 Key EC001288
    ETIM 9.0 Key EC001288
