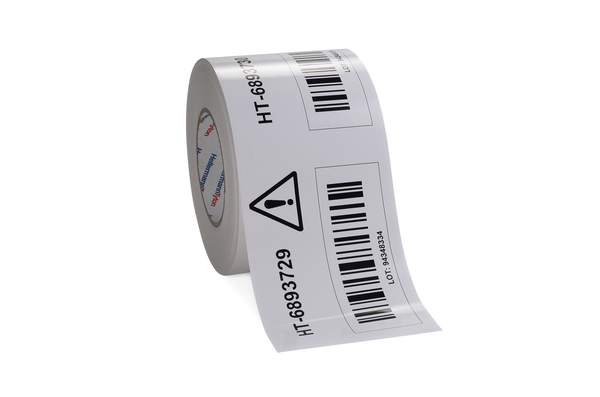

Label, white, thermal transfer print, 101.60mm, 50m
Art.-No. 596-12171 | TAGR1TD1-1213-WH | Details

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

This product is part of:

Application	These coloured labels are used to identify storage systems with barcode and location information. They are also suitable for general marking of parts and components, samples and blocked goods in quality assurance, storage boxes and barrels.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties	Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
Colour	White gloss (GSWH)
Local order number	TAGR1TD-1213-WH
Material	Type 1213, Vinyl, glossy colours (1213)
Mech. Material Properties	permanent adhesive, suitable for rough surfaces
PART DESCRIPTION	TAGR1TD1-1213-WH
Pack Cont.	50m
Package Content packed in	Carton
Product Family	Helatag 1213
Product Group	Warehouse and pipe labelling, thermal transfer
Self adhesive (Yes/No)	Yes
Short Description	Warehouse and Pipe Labelling for Thermal Transfer Printing 101.6 mm white
Type	TAGR1TD1


Print Method	thermal transfer print
Print Method (Alternative)	laser beam print
Thickness (T)	66.0µm
Thickness of Foil	95
Thickness of foil test method	ISO 534
Weight/Unit	0.02742kg
Width (W)	101.60mm
Width of Liner (WL)	101.60mm

Adhesive	Acrylic
Curing Temperature	from +8 °C
ELV compliant Dir. Art. 4 (2)	YES
Halogen-free	No
Hazardous Goods	No
Initial tack	16N/25 mm
Initial tack	FINAT FTM 1
Operating Temperature	-40 °C to +90 °C
Peel strength	27 N/15 mm
Peel strength test method	DIN 53455-5
Pre-Printed	No
ROHS compliant	Yes
Recommended Ribbon Type	TT822OUT
Shear strength	1.5
Shear strength test method	DIN 53455-5
Shelf Life	Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications


Country of Origin	DE
Customs Number	39199080
GTIN-13 / EAN	4031026295565
Labels per Row	1pc.
Packaging 1 - Height (m)	0.1016m
Packaging 1 - Length (m)	0.147m
Packaging 1 - Qty	50
Packaging 1 - Type	Reel
Packaging 1 - Volume (m³)	0.0022m³
Packaging 1 - Weight (kg)	1.371kg
Packaging 1 - Width (m)	0.147m
Packaging 2 - Height (m)	0.12m
Packaging 2 - Length (m)	0.156m
Packaging 2 - Qty	50
Packaging 2 - Type	Carton
Packaging 2 - Volume (m³)	0.0028m³
Packaging 2 - Weight (kg)	1.471kg
Packaging 2 - Width (m)	0.15m
Packaging 3 - Height (m)	0.184m
Packaging 3 - Length (m)	0.58m
Packaging 3 - Qty	300
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.0406m³
Packaging 3 - Weight (kg)	9.426kg
Packaging 3 - Width (m)	0.38m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	7200
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	247.224kg
Packaging 4 - Width (m)	0.8m
Reel Length	50.00m
Storage Temperature	+21 °C
Storage conditions	50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
