P150-PVC-BN
Art.-No. 172-03049 | P150-PVC-BN |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

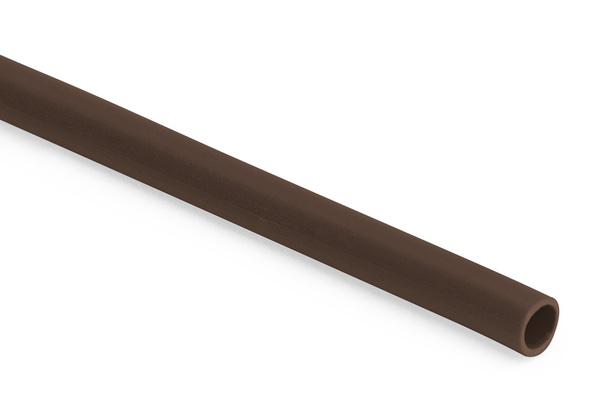

    Application These high-grade PVC sleeves (P) have a thin wall that makes them ideal for insulating wire in areas where space is at a premium. They can be supplied as continous tubing or cut lengths. The tubing is available in international resistor colour code, pink and transparent.
    Application Method In order to speed up the application of a series of sleeves, a range of TJC applicator tools are available. Thread the required sleeves onto the applicator tool, insert the wire into the end of the tool and then simply slide the sleeves along the tool and onto the wire.
    Colour Brown (BN)
    Local order number P150BN
    Material Flexible Polyvinyl Chloride, cadmium free (PVC)
    PART DESCRIPTION P150-PVC-BN
    Pack Cont. 50m
    Package Content packed in Reel
    Type P150
    Supplied ∅ D 15.0mm
    Wall (WT) 0.50mm
    Dielectric Strength 57kV/mm
    Dielectric Strength test method IEC 60684 P2
    Flammability UL 94 V0 (1 mm)
    Operating Temperature -65 °C to +105 °C, intermittent +135 °C
    ROHS compliant Yes
    Specifications
    Specifications BS-3858 Type 3, DEF STAN 59-15, IEC 684-3-101/104, UL 224
    Country of Origin GB
    GTIN-13 / EAN 5022660585913
    Packaging 1 - Weight (kg) 7.316kg
    Reel Length 50.0m
    ETIM 7.0 Key EC002254
    ETIM 8.0 Key EC002254
    ETIM 9.0 Key EC002254
    UNSPSC Key 39121721
