Fixed Thread Compression Fitting IP68 ø10mm M12
Art.-No. 166-32200 | LTS10-FMC-M12-NPB/PA6-ML |  Details

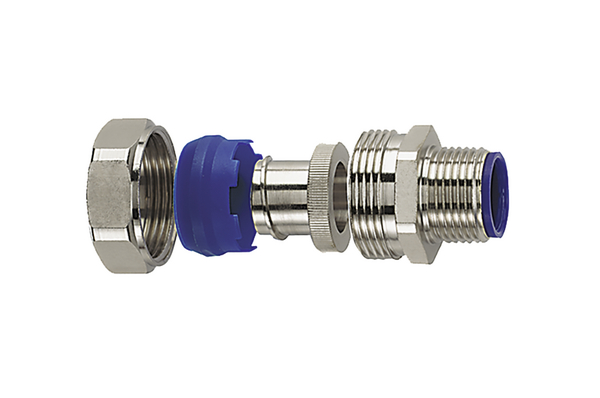

HelaGuard LTS-FMC Compression Fitting.

    • Multipart compression fitting including elastomeric seal
    • Provides excellent tensile strength
    • Can be used for knockouts or threaded entries as fitting rotates until tightened
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application External thread, nickel plated brass. Fulfils IP66, IP67, IP68 and IP69k.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    Metallic Fitting Type Compression, straight
    PART DESCRIPTION LTS10-FMC-M12-NPB/PA6-ML
    Pack Cont. 10pcs.
    Package Content packed in Bag
    Product Family LTS-FMC Fixed Thread Compression Fitting, IP68
    Product Group Fittings for metallic conduits with liquid-tight cover
    Short Description Fixed Thread Compression Fitting IP68 ø10mm M12
    Thread type metric
    Type LTS10-FMC-M12
    Type of connection Thread
    Variant Straight

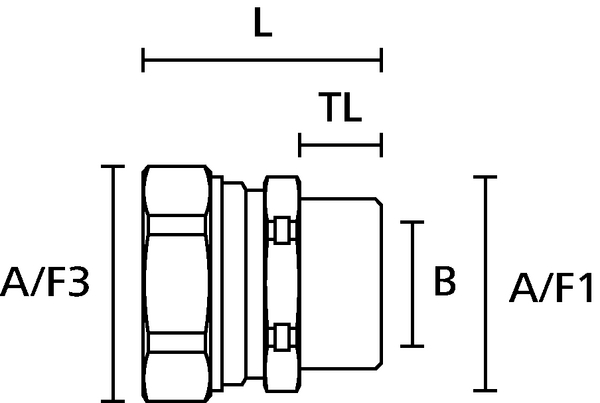

    A/F Nut (A/F3) 20mm
    Height (H) 20.0mm
    Length (L) 29.8mm
    Lowest inner diameter 5.6mm
    Min. Bore Size (B) 5.6mm
    Nominal ∅ 10mm
    Nominal ∅ (imperial) 0.38"
    Thread Length (TL) 10.0mm
    Thread Size M12
    Weight/Unit 0.03kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP66, IP67, IP68, IP69k
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026308074
    Packaging 1 - Height (m) 0.02m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00061m³
    Packaging 1 - Weight (kg) 0.300001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
