Elbow Compression Fitting IP68 ø20mm
Art.-No. 166-32600 | LTS20-LTS20-NPB/PA6-ML |  Details

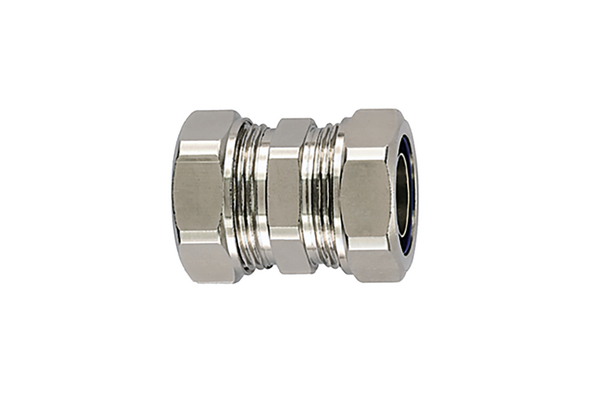

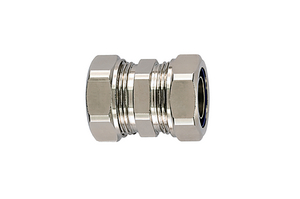

HelaGuard LTS-LTS Compression Coupler.

    • Multipart compression coupler including polyamide seal
    • Joins two conduits
    • Provides excellent tensile strength
    Add to watchlist

    Request your individual offer now

     Request quote

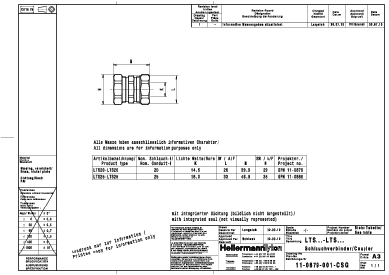

    Downloads CAD-Download
    Application Nickel plated brass. Fulfils IP66, IP67, IP68 and IP69k.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    Metallic Fitting Type Coupler
    PART DESCRIPTION LTS20-LTS20-NPB/PA6-ML
    Pack Cont. 10pcs.
    Package Content packed in Bag
    Product Family LTS-LTS Compression Coupler, IP68
    Product Group Fittings for metallic conduits with liquid-tight cover
    Short Description Elbow Compression Fitting IP68 ø20mm
    Type LTS20-LTS20
    Type of connection Thread
    Variant Straight

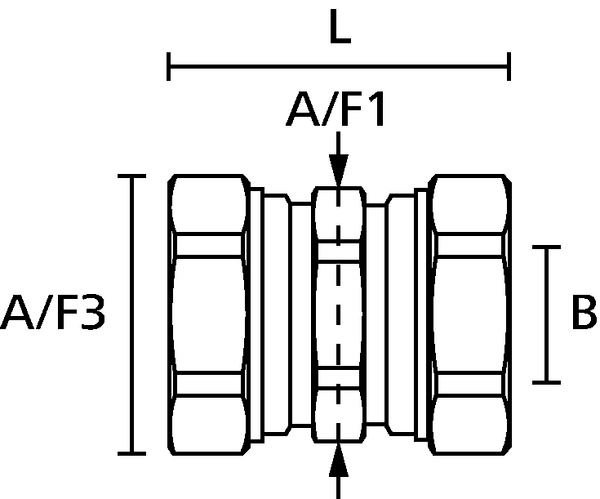

    A/F Nut (A/F3) 29mm
    Length (L) 39.5mm
    Min. Bore Size (B) 14.5mm
    Nominal ∅ 20mm
    Nominal ∅ (imperial) 0.81"
    Weight/Unit 0.080589kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP69k (in conjunction with HGL fittings), IP66, IP68, IP67
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026308456
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.23m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00147m³
    Packaging 1 - Weight (kg) 0.805891kg
    Packaging 1 - Width (m) 0.16m
    Packaging 2 - Height (m) 0.216m
    Packaging 2 - Length (m) 0.3048m
    Packaging 2 - Type Carton
    Packaging 2 - Volume (m³) 0.0176m³
    Packaging 2 - Width (m) 0.267m
    ETIM 7.0 Key EC001172
    ETIM 8.0 Key EC001172
    ETIM 9.0 Key EC001172
