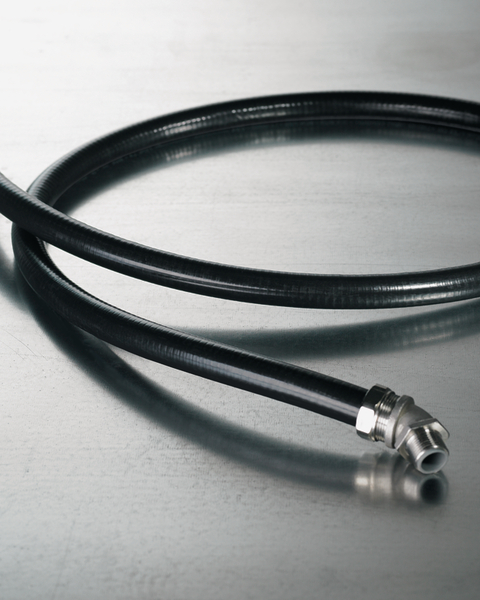

LTSUL Galvanised Steel Conduit with PVC Cover UL Listed black ø63mm reel 15m
Art.-No. 166-32106 | LTSUL63-GS/PVC/CU-BK |  Details

HelaGuard LTSUL.

    This product is not available anymore.
    • Liquid-tight (IP68 and IP69k with LTS fittings)
    • UL-listed and CSA approved
    • High compression, tensile and impact strength
    • Good flexibility
    • Smooth outer cover does not wrinkle when bent
    • Good resistance to acids, petrol, oils and greases
    • UV-resistant, suitable for outdoor use
    • Colour: black
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Machine tools or outdoor installations, liquid-tight appllications where UL listing is required.
    Colour Black (BK)
    Conduit Model with smooth PVC coating
    Material Galvanised Steel (GS), Polyvinylchloride (PVC), Copper (CU)
    PART DESCRIPTION LTSUL63-GS/PVC/CU-BK
    Pack Cont. 15m
    Package Content packed in Reel
    Product Family LTSUL, Galvanised Steel Conduit, PVC Cover, UL Listed
    Product Group Metallic conduits with liquid-tight cover
    Short Description LTSUL Galvanised Steel Conduit with PVC Cover UL Listed black ø63mm reel 15m
    Type LTSUL63
    Bending Radius min. (R) 280mm
    Diameter (D) 51.6mm
    Inside Ø (ID) 51.6mm
    Nominal ∅ 63.5mm
    Nominal ∅ (imperial) 2.5"
    Outside Ø (OD) 59.7mm
    Weight 2159g/m
    Weight/Unit 2.16kg
    CE Certification No
    ELV compliant Dir. Art. 4 (2) YES
    EN61386 Classification 443340684410
    Electrical characteristics Not specified
    Hazardous Goods No
    IP-Rating IP69k, IP68
    Operating Temperature -15 °C to +75 °C
    ROHS compliant Yes
    Specifications
    Specifications CSA, UL:Listed
    Country of Origin US
    Customs Number 83071000
    GTIN-13 / EAN 4031026308050
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.26m
    Packaging 1 - Qty 15
    Packaging 1 - Type Reel
    Packaging 1 - Volume (m³) 0.00468m³
    Packaging 1 - Weight (kg) 32.4kg
    Packaging 1 - Width (m) 0.2m
    Reel Length 15m
    ETIM 7.0 Key EC001179
    ETIM 8.0 Key EC001179
    ETIM 9.0 Key EC001179
