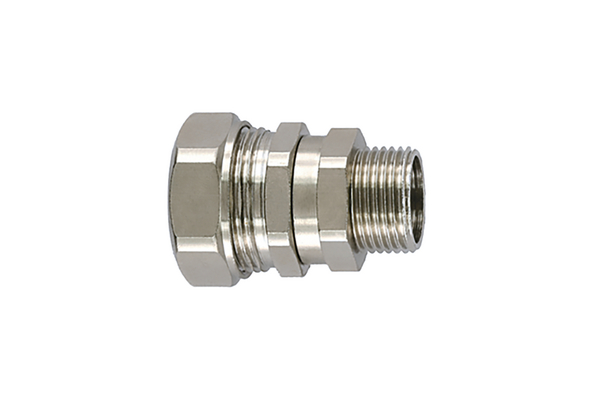

Fitting for metallic conduits with Swivel Thread Compression Fitting IP65 ø16mm M16
Art.-No. 166-31501 | PCS16-SMC-M16-NPB/PA6/PS-ML |  Details

HelaGuard PCS-SMC Swivel Compression Fitting.

    • Multipart compression fitting including elastomeric seal
    • Provides excellent tensile strength
    • External thread swivels about main body even after tightening
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application External thread, nickel plated brass with internal plated steel circlip. Fulfils IP65.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6), Plated Steel (PS)
    Metallic Fitting Type Compression, straight
    PART DESCRIPTION PCS16-SMC-M16-NPB/PA6/PS-ML
    Pack Cont. 10pcs.
    Package Content packed in Bag
    Product Family PCS-SMC Swivel Thread Compression Fitting, IP65
    Product Group Fittings for metallic conduits with plastic coating
    Short Description Fitting for metallic conduits with Swivel Thread Compression Fitting IP65 ø16mm M16
    Thread type metric
    Type PCS16-SMC-M16
    Type of connection Thread
    Variant Straight

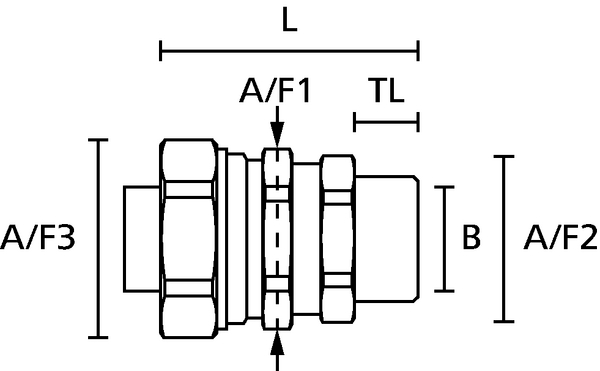

    A/F Inner Nut (A/F4) 26mm
    A/F Nut (A/F3) 26mm
    A/F Thread (A/F2) 24mm
    Height (H) 26mm
    Length (L) 40.9mm
    Lowest inner diameter 11.5mm
    Min. Bore Size (B) 11.5mm
    Nominal ∅ 16mm
    Nominal ∅ (imperial) 0.63"
    Thread Length (TL) 10.0mm
    Thread Size M16
    Weight/Unit 0.06kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP65
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026307589
    Packaging 1 - Height (m) 0.03m
    Packaging 1 - Length (m) 0.23m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0011m³
    Packaging 1 - Weight (kg) 0.61kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
