Metallic conduits with plastic coating
Art.-No. 166-30736 | PCS25-GS/PVC-GY | Details

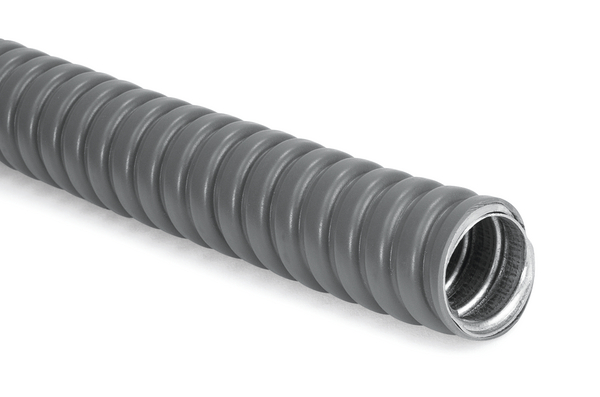

HelaGuard PCS - PVC Coated Galvanized Steel Conduit.

High compression, tensile and impact strength
Very flexible
Good resistance to alkalis and acids
Good resistance to chemicals
Colour: black, grey

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Metallic conduits with plastic coating >

Base Data

Application	Flexible galvanised steel conduit with PVC coating, typically used in machine and plant construction and electrical installations.
Colour	Grey (GY)
Conduit Model	with PVC coating
Material	Galvanised Steel (GS), Polyvinylchloride (PVC)
PART DESCRIPTION	PCS25-GS/PVC-GY
Pack Cont.	25m
Package Content packed in	Reel
Product Family	PCS Galvanised Steel Conduit, PVC Coating
Product Group	Metallic conduits with plastic coating
Type	PCS25

Product Dimensions


Bending Radius min. (R)	55mm
Diameter (D)	20.9mm
Inside Ø (ID)	21.1mm
Length (L)	25m
Nominal ∅	25mm
Nominal ∅ (imperial)	1"
Outside Ø (OD)	26.0mm
Weight	411g/m

Downloads

Specifications

CE Certification	Yes
EN61386 Classification	443140652410 (with compression fittings)
Electrical characteristics	Not specified
IP-Rating	IP66 (in conjunction with HG fittings)
Operating Temperature	-15 °C to +70 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	4031026408309
Reel Length	25m

More Information

ETIM 7.0 Key	EC001179
ETIM 8.0 Key	EC001179
ETIM 9.0 Key	EC001179
