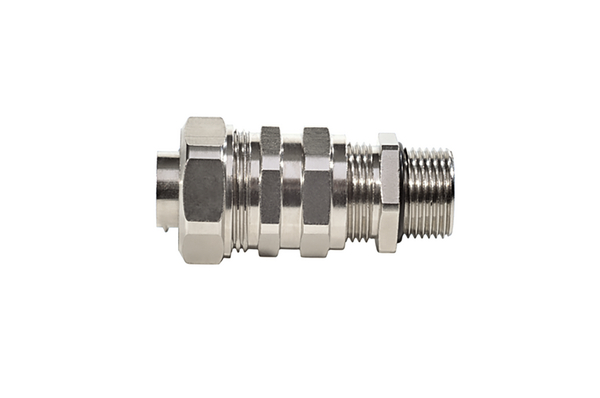

Straight Fitting for metallic conduits with Cable Gland IP65 ø32mm M32
Art.-No. 166-36104 | PCS32-SCG-M32-PA66/NPB/TPE-ML |  Details

PCS-SCG Compression Fitting with Strain Relief and Cable Seal.

    • Multipart compression fitting including elastomeric seal
    • Powerful strain relief function
    • Seals cable at IP68 and IP69k
    • Provides excellent tensile strength
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application External thread, nickel plated brass.
    Fulfils IP65.
    Cable ⌀ max 21mm
    Cable ⌀ min 11mm
    Colour Metal (ML)
    Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
    Metallic Fitting Type Cable gland
    PART DESCRIPTION PCS32-SCG-M32-PA66/NPB/TPE-ML
    Pack Cont. 2pcs.
    Package Content packed in Bag
    Product Family PCS-SCG Straight Cable Gland fitting, IP65
    Product Group Fittings for metallic conduits with plastic coating
    Short Description Straight Fitting for metallic conduits with Cable Gland IP65 ø32mm M32
    Thread type metric
    Type PCS32-SCG-M32
    Type of connection Thread
    Variant Straight

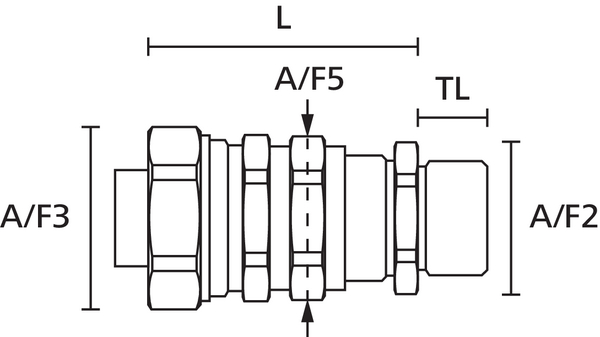

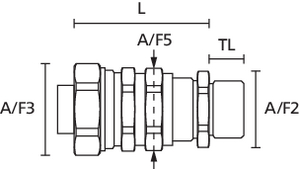

    A/F Gland Body (A/F5) 40mm
    A/F Nut (A/F3) 42mm
    A/F Thread (A/F2) 36mm
    Length (L) 78mm
    Min. Bore Size (B) 21.0mm
    Nominal ⌀ 32mm
    Nominal ⌀ (imperial) 1.25"
    Thread Length (TL) 15.0mm
    Thread Size M32
    Weight/Unit 1.8kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP65
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026408484
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 2
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00176m³
    Packaging 1 - Weight (kg) 3.600001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
