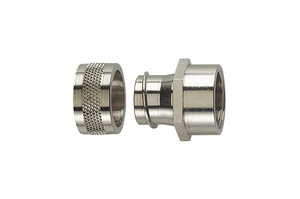

Fitting for metallic conduits with Fixed Internal Thread ø32mm M32
Art.-No. 166-30603 | SC32-FF-M32-NPB-ML |  Details

HelaGuard PCS-FF Fixed Internal Thread.

    • Multi-part fitting of shell and body with internal thread
    • Provides tight, reliable hold of conduit
    • Can be used to couple two conduits together when used with swivel fitting
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Fixed internal thread, nickel plated brass.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    Metallic Fitting Type Standard
    PART DESCRIPTION SC32-FF-M32-NPB-ML
    Pack Cont. 2pcs.
    Package Content packed in Bag
    Product Family SC-FF Fixed Internal Thread
    Product Group Fittings for metallic conduits
    Short Description Fitting for metallic conduits with Fixed Internal Thread ø32mm M32
    Thread type metric
    Type SC32-FF-M32
    Type of connection Thread
    Variant Straight
    Length (L) 33.3mm
    Min. Bore Size (B) 26.2mm
    Nominal ∅ 32mm
    Nominal ∅ (imperial) 1.25"
    Thread Length (TL) 13.0mm
    Thread Size M32
    Weight/Unit 0.11kg
    CAS Number 7439-92-1
    CE Certification Yes
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP40
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026306704
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 2
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00152m³
    Packaging 1 - Weight (kg) 0.220001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
