Fitting for metallic conduits with Fixed External Thread ø63mm M63
Art.-No. 166-30309 | SC63-FM-M63-NPB-ML |  Details

HelaGuard SC-FM Fixed External Thread.

    • Multi-part fitting of shell and body with external thread
    • Provides tight, reliable hold of conduit
    • Can be secured with locknut
    Add to watchlist

    Request your individual offer now

     Request quote

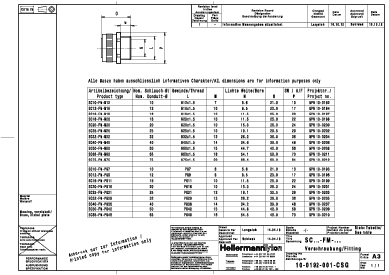

    Downloads CAD-Download
    Application Fixed external thread, nickel plated brass.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    Metallic Fitting Type Standard
    PART DESCRIPTION SC63-FM-M63-NPB-ML
    Pack Cont. 1pc.
    Package Content packed in Bag
    Product Family SC-FM Fixed External Thread
    Product Group Fittings for metallic conduits
    Short Description Fitting for metallic conduits with Fixed External Thread ø63mm M63
    Thread type metric
    Type SC63-FM-M63
    Type of connection Thread
    Variant Straight
    Length (L) 50.0mm
    Lowest inner diameter 54.5mm
    Min. Bore Size (B) 54.1mm
    Nominal ∅ 63mm
    Nominal ∅ (imperial) 2.5"
    Thread Length (TL) 18.0mm
    Thread Size M63
    Weight/Unit 0.32kg
    CAS Number 7439-92-1
    CE Certification Yes
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP40
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026306124
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.21m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00134m³
    Packaging 1 - Weight (kg) 0.320001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
