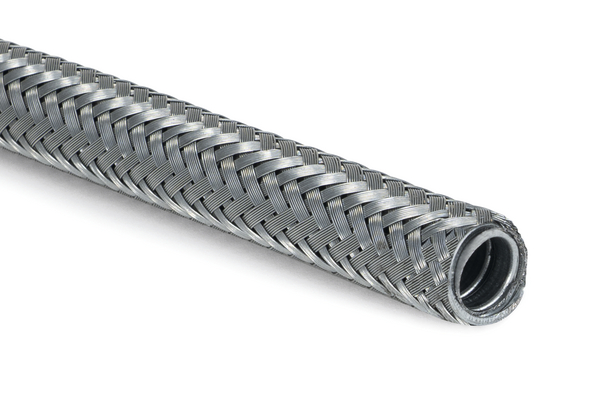

Galvanised Steel Conduit with Galvanised Steel Overbraid ø40mm reel 10m
Art.-No. 166-34405 | SCSB40-GS-ML |  Details

HelaGuard SCSB - Overbraided Galvanized Steel Conduit.

    This product is not available anymore.
    • High compression, tensile and impact strength
    • Highly resistant to abrasion
    • Very flexible
    • Provides EMC screening

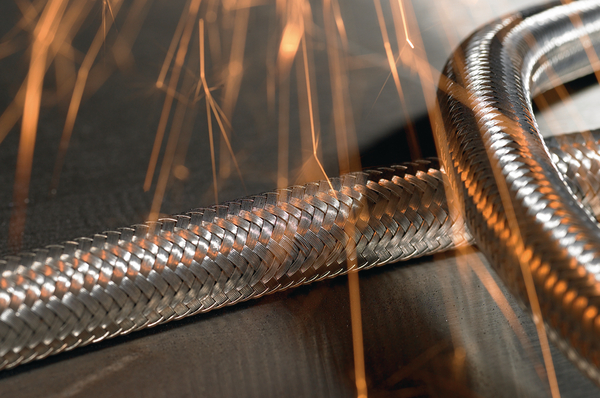

    • Highly resistant to hot metal swarf and splashes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Industrial environments and high temperatures.
    Colour Metal (ML)
    Conduit Model with EMI shielding
    Local order number SC10-GS-ML-50M
    Material Galvanised Steel (GS)
    PART DESCRIPTION SCSB40-GS-ML
    Pack Cont. 10m
    Package Content packed in Reel
    Product Family SCSB Galvanised Steel Conduit, Galvanised Steel Overbraid
    Product Group Metallic conduits with metallic overbraid
    Short Description Galvanised Steel Conduit with Galvanised Steel Overbraid ø40mm reel 10m
    Type SCSB40

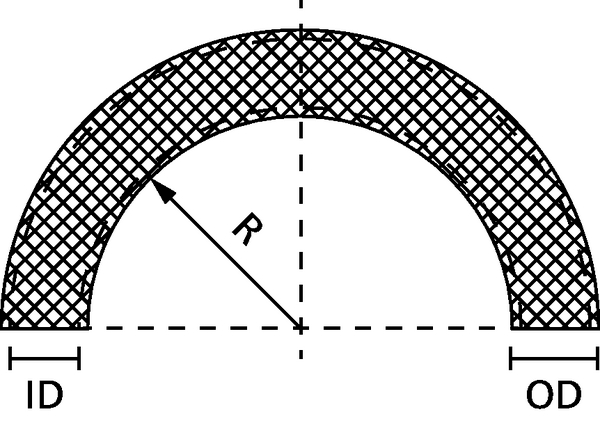

    Bending Radius min. (R) 80mm
    Diameter (D) 37.6mm
    Inside Ø (ID) 37.6mm
    Nominal ∅ 40mm
    Nominal ∅ (imperial) 1.56"
    Outside Ø (OD) 43.5mm
    Weight 1086g/m
    Weight/Unit 1.09kg
    CE Certification Yes
    ELV compliant Dir. Art. 4 (2) YES
    EN61386 Classification 445640401410
    Electrical characteristics Not specified
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP40
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 83071000
    GTIN-13 / EAN 4031026309231
    Packaging 1 - Height (m) 0.21m
    Packaging 1 - Length (m) 0.5m
    Packaging 1 - Qty 10
    Packaging 1 - Type Reel
    Packaging 1 - Volume (m³) 0.0525m³
    Packaging 1 - Weight (kg) 12.0kg
    Packaging 1 - Width (m) 0.5m
    Reel Length 10m
    ETIM 7.0 Key EC001179
    ETIM 8.0 Key EC001179
    ETIM 9.0 Key EC001179
