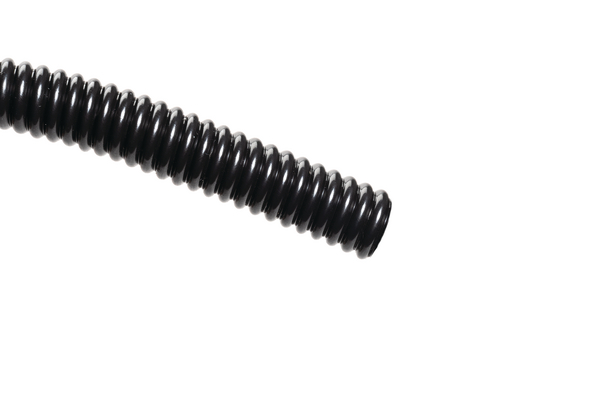

Flexible PTFE convoluted tubing
Art.-No. 169-23016
| CTT-16 NSA935805-16-PTFE-BK
|
Details
- Excellent resistance to almost all chemicals
- Resistant to low and high temperatures
- Very good tensile strength
- Very good fatigue life
- Superior dielectric strength and anti-adhesive properties
- Protects cables from extreme temperatures, fire, moisture
- Protects cables from corrosion, vibration and abrasion
Request your individual offer now
Request quote
More products in this product group:
| Application | CTT conduits are used in many industries with very demanding environments, including aviation, aerospace, chemical, pharmaceutical, ship building, food processing and electrical industry. |
| Colour | Black (BK) |
| Key product features | high temperature resistant |
| Material | Polytetrafluoroethylene (PTFE) |
| PART DESCRIPTION | CTT-16 NSA935805-16-PTFE-BK |
| Pack Cont. | 25.0m |
| Package Content packed in | Reel |
| Product Family | CTT PTFE Conduits |
| Product Group | Non-Metallic Conduits |
| Short Description | Flexible PTFE convoluted tubing |
| Type | CTT-16 NSA935805-16 |
| Variant | Unslit |
|
|
| Bending Radius (imperial) | 2.0" |
| Bending Radius min. (R) | 51mm |
| Diameter (D) | 16.2mm |
| Inner Diameter D (Imperial) | 0.639" |
| Inside Ø (ID) | 16.23mm |
| Length (L) | 25.0m |
| Nominal ∅ | 16.0mm |
| Nominal ∅ (imperial) | 0.625" |
| Outside Ø (OD) | 21.26mm |
| Outside ∅ (OD) (imperial) | 0.837" |
| Outside ∅ (OD2) | 21.26mm |
| Outside ∅ (OD2) (imperial) | 0.837" |
| Pitch (P) | 3.6mm |
| Pitch (P) (imperial) | 0.142" |
| Weight | 78g/m |
| Weight/Unit | 0.065kg |
| ∅ (D2) | 12.3mm |
| ∅ D (imperial) | 0.64" |
| ∅ D2 (imperial) | 0.48" |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | FAR 25 |
| Halogen-free | No |
| Hazardous Goods | No |
| Oil resistant | No |
| Operating Temperature | -65 °C to +260 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | NSA 935805 |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | FR |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026402987 |
| Packaging 1 - Height (m) | 0.235m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.0376m³ |
| Packaging 1 - Weight (kg) | 3.91kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 450 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 123.26kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 25m |
| Reel Length (imperial) | 82.0ft |
