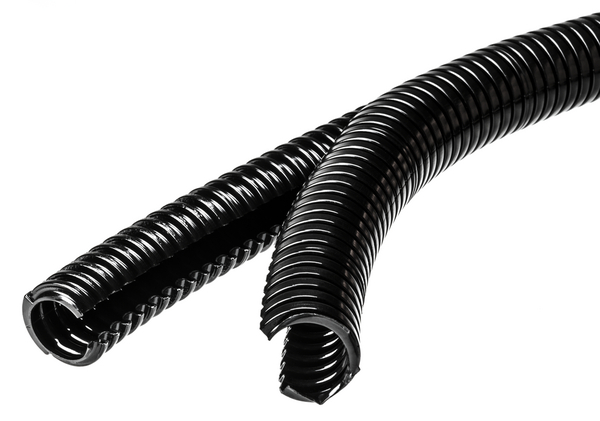

HG-DC0750-PA6-BK
Art.-No. 166-11810 | HG-DC0750-PA6-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-11810
    Material Polyamide 6 (PA6)
    PART DESCRIPTION HG-DC0750-PA6-BK
    Pack Cont. 50m
    Package Content packed in Pack

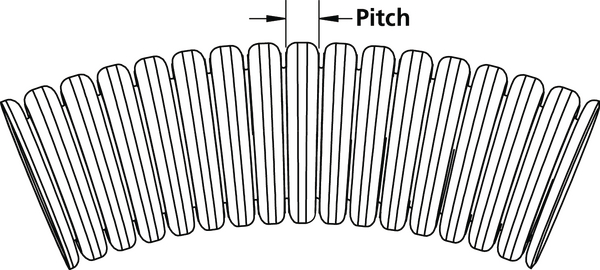

    Pitch Type coarse
    Type HG-DC0750
    Bending Radius (imperial) 6.70"
    Bending Radius min. (R) 170mm

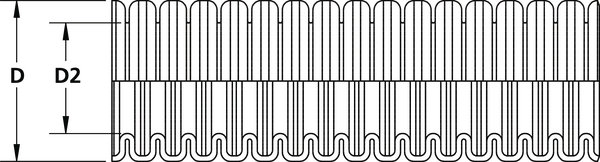

    Inner Diameter D (Imperial) 0.81"
    Inside ⌀ (ID) 20.5mm
    Length (L) 50m
    Nominal ⌀ 28mm
    Nominal ⌀ (imperial) 0.75"
    Outside ⌀ (OD) 28.5mm
    Outside ⌀ (OD) (imperial) 1.13"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026490441
    Packaging 1 - Type Reel
    UNSPSC Key 39131706
