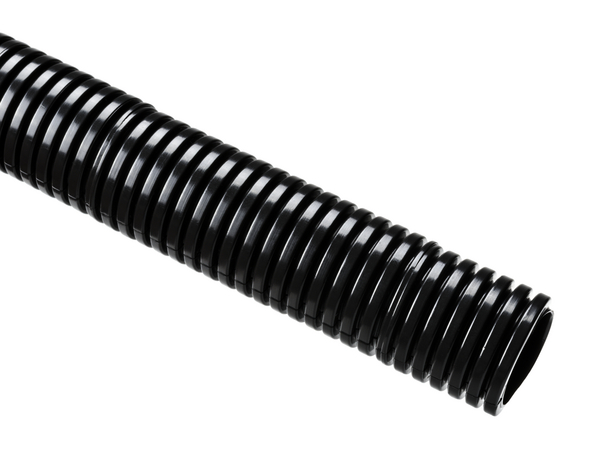

HG-FR0380-PA6FR-BK
Art.-No. 166-90202 | HG-FR0380-PA6FR-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90202
    Material Polyamide 6, flame retardant (PA6FR)
    PART DESCRIPTION HG-FR0380-PA6FR-BK
    Pack Cont. 30.48m
    Package Content packed in Reel
    Pitch Type fine
    Type HG-FR0380
    Bending Radius (imperial) 1.38"
    Bending Radius min. (R) 35mm
    Inner Diameter D (Imperial) 0.47"
    Inside Ø (ID) 11.8mm
    Length (L) 30.5m
    NW ∅ 12mm
    Nominal ∅ 16mm
    Nominal ∅ (imperial) 0.38"
    Outside Ø (OD) 15.8mm
    Outside ∅ (OD) (imperial) 0.63"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Limited Fire Hazard Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Specifications
    Specifications ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026464275
    UNSPSC Key 39131601
