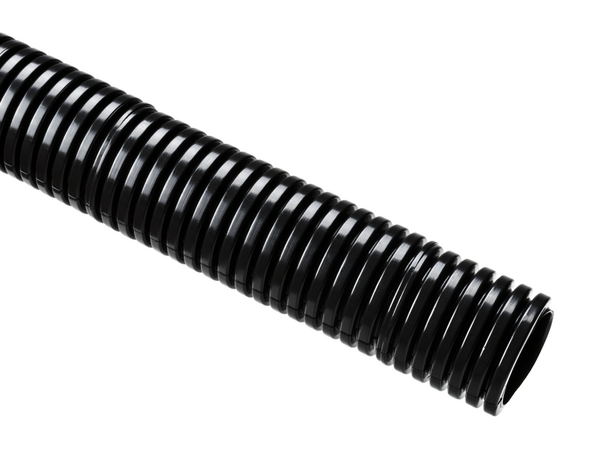

HG-FR0750-PA6FR-BK
Art.-No. 166-90204 | HG-FR0750-PA6FR-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90204
    Material Polyamide 6, flame retardant (PA6FR)
    PART DESCRIPTION HG-FR0750-PA6FR-BK
    Pack Cont. 30.48m
    Package Content packed in Reel
    Pitch Type coarse
    Type HG-FR0750
    Bending Radius (imperial) 1.97"
    Bending Radius min. (R) 50mm
    Inner Diameter D (Imperial) 0.86"
    Inside Ø (ID) 21.7mm
    Length (L) 30.5m
    Nominal ∅ 28mm
    Nominal ∅ (imperial) 0.75"
    Outside Ø (OD) 28.5mm
    Outside ∅ (OD) (imperial) 1.13"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Limited Fire Hazard Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Specifications
    Specifications ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026464299
    UNSPSC Key 39131601
