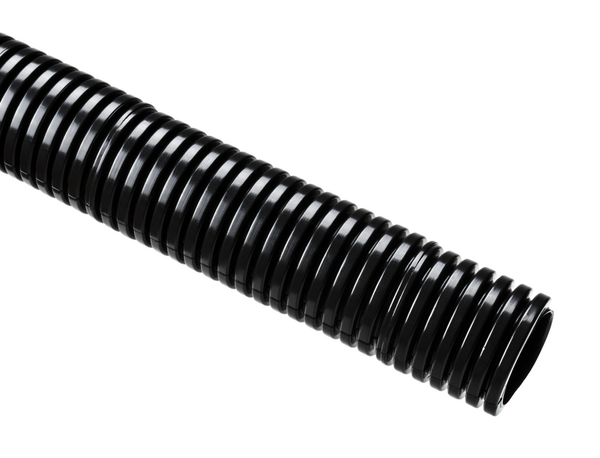

HG-LW0380-PA6-BK
Art.-No. 166-90196 | HG-LW0380-PA6-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90196
    Material Polyamide 6 (PA6)
    PART DESCRIPTION HG-LW0380-PA6-BK
    Pack Cont. 30.48m
    Package Content packed in Reel
    Pitch Type fine
    Type HG-LW0380
    Bending Radius (imperial) 1.38"
    Bending Radius min. (R) 35mm
    Inner Diameter D (Imperial) 0.48"
    Inside Ø (ID) 11.8mm
    Length (L) 30.5m
    NW ∅ 12mm
    Nominal ∅ 16mm
    Nominal ∅ (imperial) 0.38"
    Outside Ø (OD) 15.8mm
    Outside ∅ (OD) (imperial) 0.63"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026464213
    UNSPSC Key 39131601
