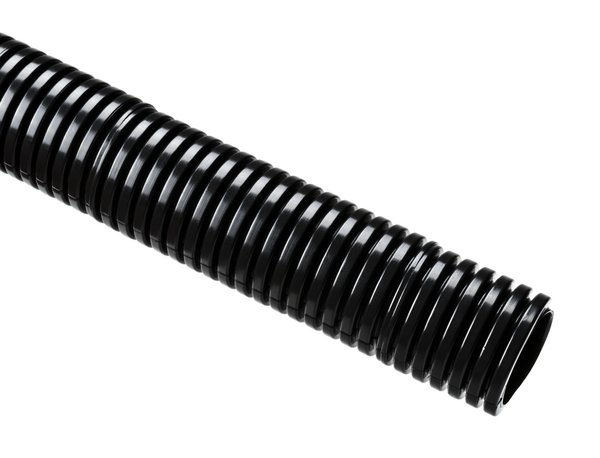

HG-SW1000-PA6-BK
Art.-No. 166-90193 | HG-SW1000-PA6-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90193
    Material Polyamide 6 (PA6)
    PART DESCRIPTION HG-SW1000-PA6-BK
    Pack Cont. 15.24m
    Package Content packed in Reel
    Pitch Type coarse
    Type HG-SW1000
    Bending Radius (imperial) 2.36"
    Bending Radius min. (R) 60mm
    Inner Diameter D (Imperial) 1.11"
    Inside Ø (ID) 28.1mm
    Length (L) 15.2m
    NW ∅ 29mm
    Nominal ∅ 34mm
    Nominal ∅ (imperial) 1"
    Outside Ø (OD) 34.5mm
    Outside ∅ (OD) (imperial) 1.36"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E246572
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026464183
    UNSPSC Key 39131601
