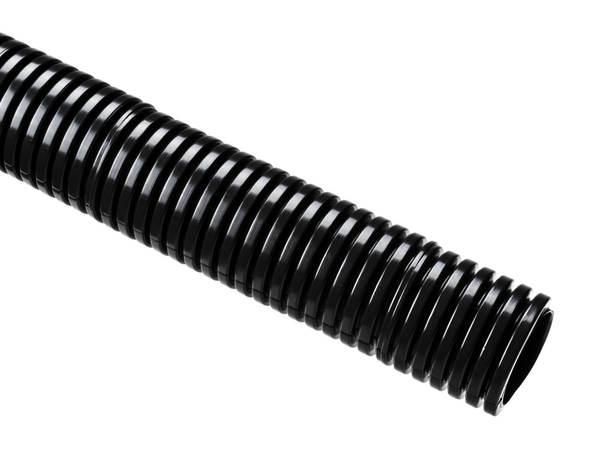

HG-SW1250-PA6-BK
Art.-No. 166-90194 | HG-SW1250-PA6-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90194
    Material Polyamide 6 (PA6)
    PART DESCRIPTION HG-SW1250-PA6-BK
    Pack Cont. 15.24m
    Package Content packed in Reel
    Pitch Type coarse
    Type HG-SW1250
    Bending Radius (imperial) 2.76"
    Bending Radius min. (R) 70mm
    Inner Diameter D (Imperial) 1.40"
    Inside Ø (ID) 35.5mm
    Length (L) 15.2m
    NW ∅ 36mm
    Nominal ∅ 42mm
    Nominal ∅ (imperial) 1.25"
    Outside Ø (OD) 42.5mm
    Outside ∅ (OD) (imperial) 1.68"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E246572
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026464190
    UNSPSC Key 39131601
