19/11/2024

HG-SWSL0380-PA6-BK
Art.-No. 166-90270 | HG-SWSL0380-PA6-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number 166-90270
    Material Polyamide 6 (PA6)

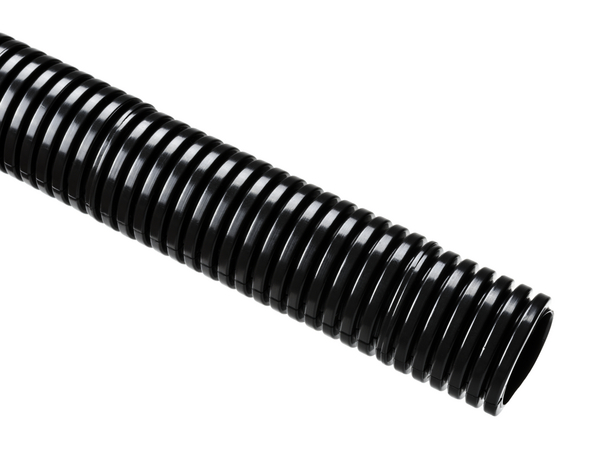

    PART DESCRIPTION HG-SWSL0380-PA6-BK
    Pack Cont. 30.48m
    Package Content packed in Reel
    Pitch Type fine
    Type HG-SWSL0380
    Bending Radius (imperial) 1.38"
    Bending Radius min. (R) 35mm
    Inner Diameter D (Imperial) 0.47"
    Inside Ø (ID) 11.8mm
    Length (L) 30.5m
    NW ∅ 12mm
    Nominal ∅ 16mm
    Nominal ∅ (imperial) 0.38"
    Outside Ø (OD) 15.8mm
    Outside ∅ (OD) (imperial) 0.63"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026485492
    UNSPSC Key 39131601
