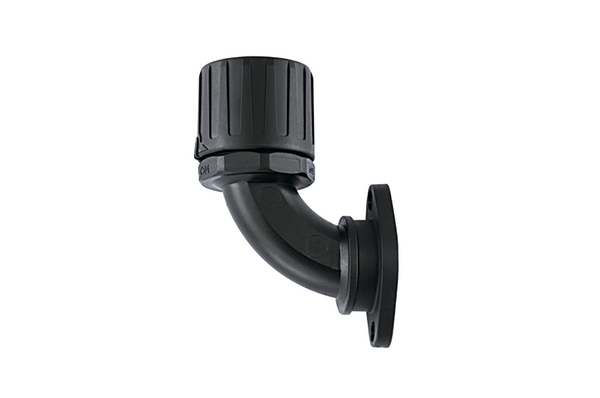

Elbow Fitting 90° IP66 with Swivel Flange ø21mm
Art.-No. 166-22401 | HG21-90FL-PA66-BK |  Details

HelaGuard HG-90FL 90° Elbow Swivel Flange, IP66.

    • One piece, fast fit
    • High pull-off strength
    • Highly resistant to solvents and oils
    • Free of halogen, sulphur and phosphorus
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application 90° elbow swivel flange.
    Brass Thread (Y/N) No
    Colour Black (BK)
    Local order number HG21-90FL-PA66-BK-10ST
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION HG21-90FL-PA66-BK
    Pack Cont. 10pcs.
    Package Content packed in Bag
    Product Family HG-90FL 90° Elbow Swivel Flange, IP66
    Product Group Fittings with swivel flange
    Short Description Elbow Fitting 90° IP66 with Swivel Flange ø21mm
    Strain Relief Function (Y/N) No
    Swivel Thread (Y/N) No
    Thread type not applicable
    Type HG21-90FL
    Type of connection Snap-connection
    Variant 90°-elbow
    Angle 90
    Fixing Hole Centres (F) 36.0mm
    Length (L) 53mm
    Lowest inner diameter 14mm
    Min. Bore Size (B) 14.0mm
    NW ∅ 17mm
    Nominal ∅ 21mm
    Nominal ∅ (imperial) 0.81"
    Outside ∅ max (OD max.) 34mm
    Weight/Unit 0.019kg
    for Hole ∅ (FH) 5.2 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP66
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Specifications UL-Recognized
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 4031026304113
    Packaging 1 - Height (m) 0.032m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 10
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00154m³
    Packaging 1 - Weight (kg) 0.190001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001176
    ETIM 8.0 Key EC001176
    ETIM 9.0 Key EC001176
