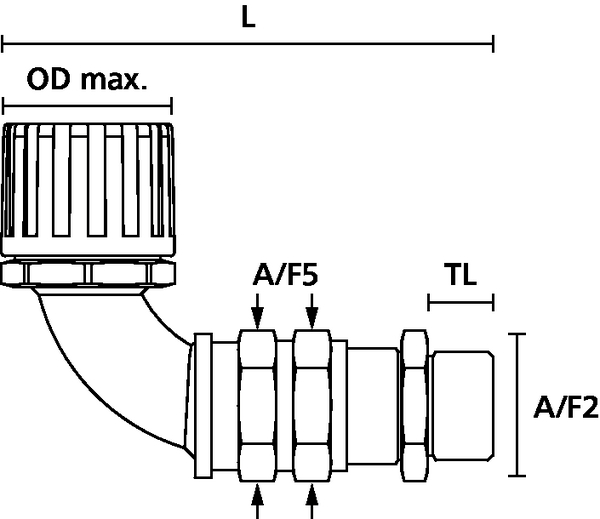

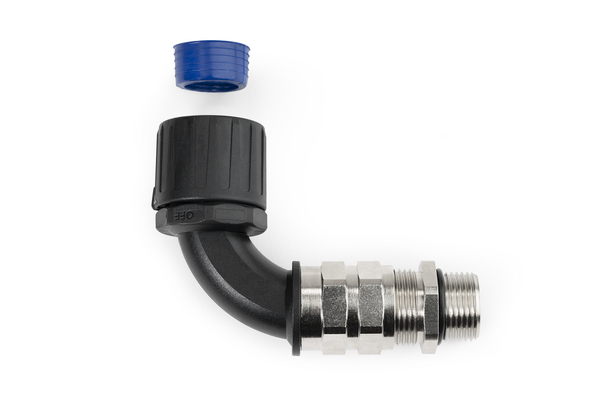

Elbow Fitting 90° with Strain Relief and Cable Seal IP68 ø16mm M16
Art.-No. 166-22702
| HGL16-90CG-M16-PA66/NPB/TPE-BK
|
Details
- Provides strain relief
- Seals cable at IP68 and IP69k
- High pull-off strength
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
Request your individual offer now
Request quote
More products in this product group:
| Application | 90° elbow fitting with cable seal and strain relief. Fulfils IP66, IP67, IP68 and IP69k. |
| Brass Thread (Y/N) | Yes |
| Cable ∅ max | 10mm |
| Cable ∅ min | 4.5mm |
| Colour | Black (BK) |
| Material | Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE) |
| PART DESCRIPTION | HGL16-90CG-M16-PA66/NPB/TPE-BK |
| Pack Cont. | 10pcs. |
| Package Content packed in | Bag |
| Product Family | HGL-90CG 90° Elbow fitting, IP68 |
| Product Group | Fittings with strain relief and cable seal |
| Short Description | Elbow Fitting 90° with Strain Relief and Cable Seal IP68 ø16mm M16 |
| Strain Relief Function (Y/N) | Yes |
| Swivel Thread (Y/N) | No |
| Thread type | metric |
| Type | HGL16-90CG-M16 |
| Type of connection | Snap-connection |
| Variant | 90°-Bend |
Download
| CAS Number | 7439-92-1 |
| Critical Substance |
Lead in Copper alloy |
| EC Number | 231-100-4 |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP69k (in conjunction with HGL fittings), IP66, IP68, IP67 |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL-Recognized |
