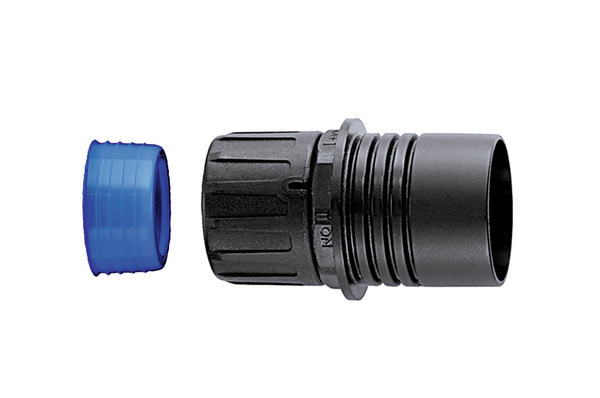

Reducer IP68 21-34mm black
Art.-No. 166-25105
| HGL21-R34-PA66/TPE-BK
|
Details
- Reduce size of connector to attach smaller size conduits
- Used with T-Connector and Y-Connectors
- Highly resistant to solvents and oils
- Free of halogen, sulphur and phosphorus
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Material | Polyamide 6.6 (PA66), Thermoplastic Elastomer (TPE) |
| PART DESCRIPTION | HGL21-R34-PA66/TPE-BK |
| Pack Cont. | 5pcs. |
| Package Content packed in | Bag |
| Product Family | HGL-R Reducer, IP68 |
| Product Group | Connectors, reducers and couplers |
| Short Description | Reducer IP68 21-34mm black |
| Type | HGL21-R34 |
| Type of connection | Snap-connection |
| Variant | Straight |
|
|
| Diameter (D) | 34mm |
| Face Diameter FD (metric) | 44mm |
| From nominal diameter | 34mm |
| Length (L) | 60mm |
| Length (L2) | 30mm |
| Min. Bore Size (B) | 17.5mm |
| Nominal ∅ | 21mm |
| Nominal ∅ (imperial) | 0.81" |
| Outside ∅ max (OD max.) | 32mm |
| Reduce to Nominal Diameter (Metric) | 34mm |
| To nominal diameter | 21mm |
| Weight/Unit | 0.017kg |
| ∅ (D2) | 21mm |
