Universal 110 Category 5e
Art.-No. 853-50063
| APP110C5E48RS
|
Details
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |

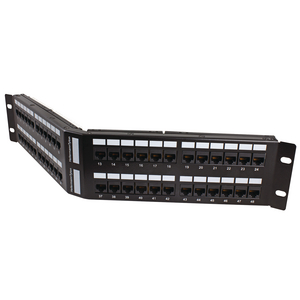

| Description | The Universal 110 Angled Category 5e range of panels offer exceptional performance and are available in 1U 24 port and 2U 48 port configurations. The 2U 48 Port Angled Panel is constructed of 8 modular units, each offering 6 RJ45 ports allowing for any of the 6 port modules to be replaced in the case of damage or failure. The angled design of the panel removes the need for the use of front cable management increasing capacity by up to 50%. The Universal 110 2U 48 Port Angled Patch Panel is supplied with Rack Snap, Cage Nut or 12-24 rack screw fixings and an optional rear cable manager is available. The Universal 110 Angled Category 5e products are designed to support any data or voice protocol that is capable of running over a Category 5e cabling system. |
| PART DESCRIPTION | APP110C5E48RS |
| Package Content packed in | Box |
| Panel Fixing Method | rack snap |
| Performance Category | Category 5E (Class D) |
| Product Family | 2U 48 Port Angled Panel |
| Product Group | Universal 110 Category 5e |
| Technical Description | The Universal 110 Angled Category 5e Panel is available in 1U 24 port or 2U 48 port configurations. The panels are manufactured with 110 punch down IDC blocks and are supplied with a clear plastic channel which protects the PCB and allows easy viewing of the wiring label. The panel is screen printed and offers write-on labelling fields for easy port identification. Each U also has a separate central labelling field for patch panel identification. The Angled Global Panel is supplied with a comprehensive colour and numbering label on the rear modules showing both 568A and 568B wiring options to ensure error free terminations. Each PCB modules is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 5e. The Universal 110 Angled Category 5e panels offer backward compatibility with Category 5 and voice products. |
| Type | APP110C5E48RS |
