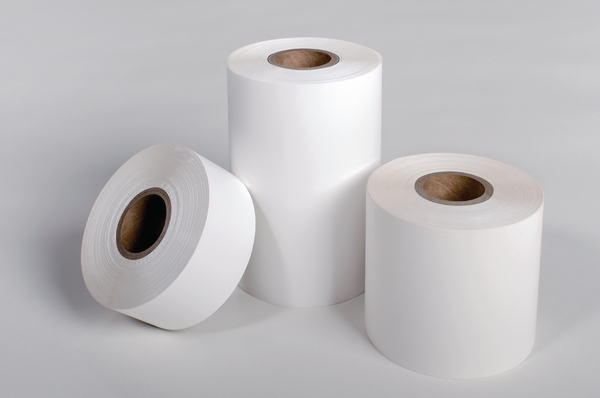

Thermal transfer ribbon, W=100.0mm, white, 300m
Art.-No. 556-00211 | TTRHTWH 100MM-PET-WH Details

  • Specially formulated ink for use on specialist high temperature materials
  • Excellent print resistance and print clarity
  • Withstands temperatures up to 225 °C
  • Two available widths 70 mm and 100 mm

Request your individual offer now

e-Learning
Application The thermal transfer print technology is based on heating up certain dots in the print head. This transfers the ink very precisely from the ribbon onto the surface of the printed material.
Colour White (WH)
Material Polyester Film (PET)
PART DESCRIPTION TTRHTWH 100MM-PET-WH
Pack Cont. 1pc.
Package Content packed in pcs.
Product Family TTRHT: specially formulated ribbon for THTT, THTT DS, TAGHT
Product Group Thermal transfer ribbons for high temperature heatshrink and TipTags
Short Description Thermal Transfer Ribbon 300m x 110 mm white
Type TTRHTWH 100MM
Variant Coloured ribbon
Inside Ø (ID) 25.4mm
Length (L) 300m
Print Method thermal transfer print
Recommended Material

TAGPU

Thickness (T) 9.8µm
Thickness of Foil 5.7
Weight/Unit 0.33kg
Width (W) 100.0mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Melting Point starting from +90 °C
ROHS compliant Yes
Shelf Life 5 years
Specifications
Country of Origin JP
Customs Number 96121010
Dimensions W x H x D 100.0 mm x
GTIN-13 / EAN 4031026339023
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.065m
Packaging 1 - Qty 1
Packaging 1 - Type Reel
Packaging 1 - Volume (m³) 0.00042
Packaging 1 - Weight (kg) 0.4kg
Packaging 1 - Width (m) 0.065m
Packaging 3 - Height (m) 0.115m
Packaging 3 - Length (m) 0.385m
Packaging 3 - Qty 6
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0073
Packaging 3 - Weight (kg) 2.675kg
Packaging 3 - Width (m) 0.165m
Packaging 4 - Height (m) 0.719m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 420
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.69
Packaging 4 - Weight (kg) 208.25kg
Packaging 4 - Width (m) 0.8m
Reel Length 300m
Reel Width 100mm
ETIM 7.0 Key EC000608
ETIM 8.0 Key EC000608
ETIM 9.0 Key EC001694
