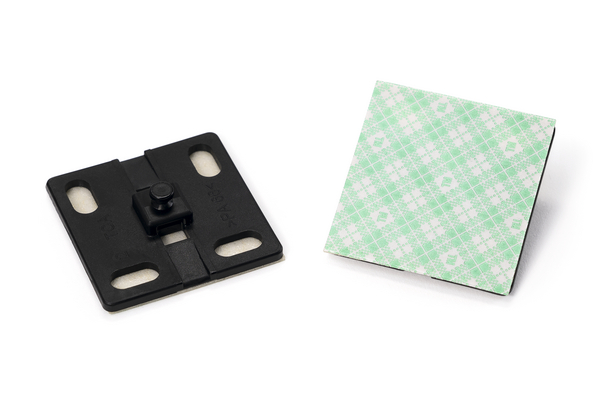

Accessory, Helawrap, black, 50pcs. (HWBASEA)
Art.-No. 161-64013
| HWBASEA-PA66HIRHS-BK
|
Details
- Mounting plates can be fixed with screws, cable ties or adhesive
- Can be used to mount any size HWClip
Request your individual offer now
Request quote
More products in this product group:
| Application | Helawrap is used to bundle and protect cable and wires in the electrical industry, panel building as well as machine, automotive and truck manufacturing. Helawrap in 25 metre lengths is the time-saving solution for industrial applications. Due to its excellent flame-retardant properties, Helawrap Polyamide 6 V0 is the product of choice wherever fire protection is essential, for example in mass transit. Helawrap in practical 2 metre lengths is designed for domestic and office use. It puts an end to the cable chaos associated with PC's, TV's and Hi-Fi systems. |
| Application Method | Place cables in applicator, then zip through cover sleeve. |
| Colour | Black (BK) |
| Fixation Method | screw-hole |
| Local order number | HWBASEA PA66HIHSBK50 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | HWBASEA-PA66HIRHS-BK |
| Pack Cont. | 50pcs. |
| Package Content packed in | Bag |
| Product Family | HWBase |
| Product Group | Acessories for retaining Helawrap Open Cable Cover |

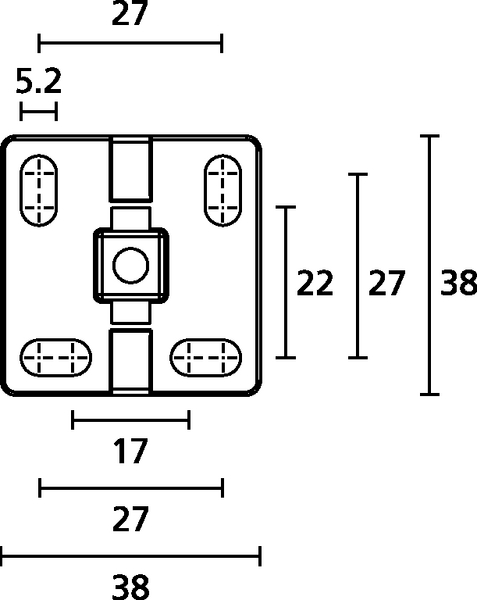

| Short Description | Screw-hole mounting base for cable cover 38x38 mm, PA66HIRHS, black |
| Type | HWBASEA |
Download
| Adhesive | Acrylate with base of polyurethane foam |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Melting Point | +284 °F (+140 °C) |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026575506 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.204462kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 8.77848kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 231.816kg |
| Packaging 4 - Width (m) | 0.8m |
